Under Sink Twin Water Filter System Ready To Installed- Nano Silver Filter

Twin  Water Filter System
with Sediment & Silver Carbon Block Filter

Model Number: AB-TWCARAVAN(ABSILVER1025-5)

This Kit Includes: Twin housing assembly with stainless steel bracket,
Sediment & Silver Carbon Block Filters
Spanner wrench and connection  comes with this kit

                                 DIVERTER-1412 Angle Stop Valve 1/2" BSP x 1/4"

Purified Water For Your Camping Adventures

Stage 1 Pleated Antibacterial Sediment filter (1um):

Reduces sediment, dirt, rust, algae, turbidity and other particulate contaminants.

AQUA BLUE H20

Sediment Filters are manufactured from pure 100% polypropylene fibers.The polypropylene construction

provides superior chemical resistance and does not breed bacterial.

Stage 2 Nano Silver Coconut Carbon Block Filter (0.5um) :

Remove sediment, particles, chemicals, heavy metals and some colour extraction. Slightly taste achieved.

AQUA BLUE H20 Carbon Block Filters are manufactured using a powdered COCONUT activated carbon with a specially designed adsorbent media for

chemical and reduce chlorine taste & odor and other contaminants. 5um carbon block cartridges help reduce sediment- not reduce water flow.

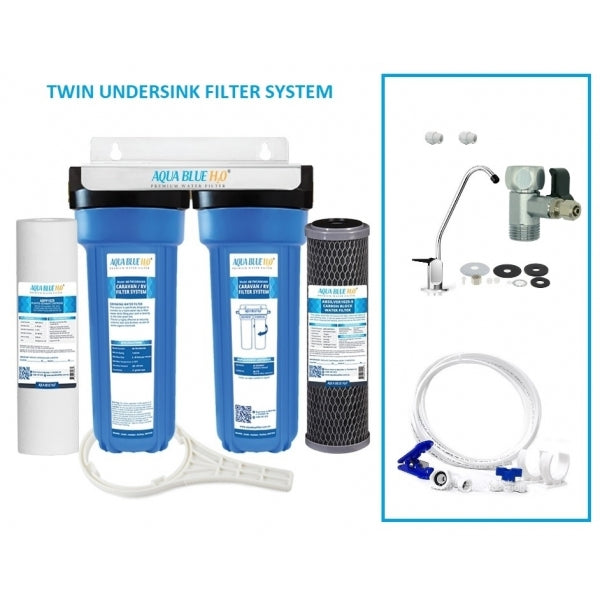

UNDER SINK TWIN WATER FILTER SYSTEM

This Kit Includes
• Twin housing assembly with stainless steel bracket
• Sediment & Carbon Filters
• Connection to suit standard garden hose fittings

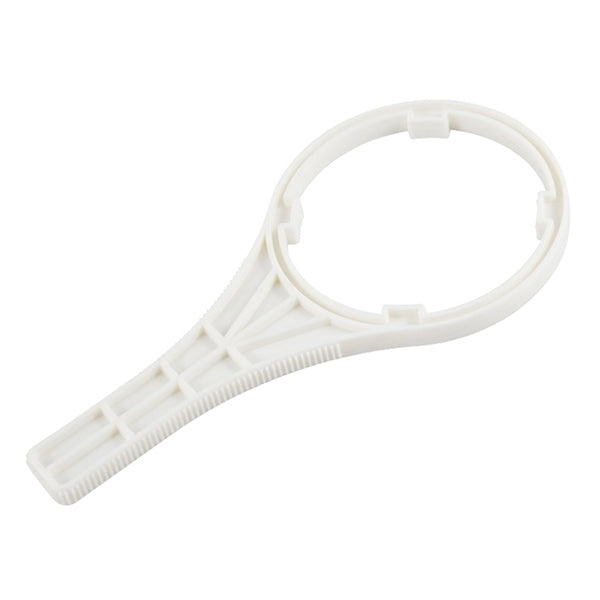

• Spanner wrench

Specifications
• Model Number: AB-TWINUDERSINK

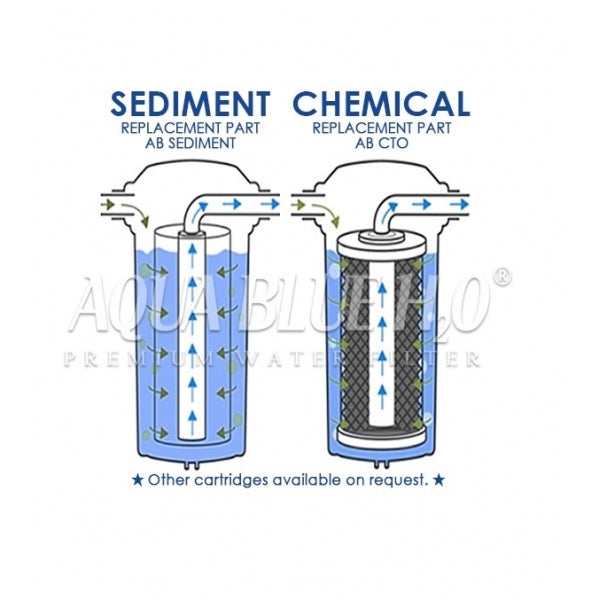

• Replacement Cartridge
- Sediment removal: AB SEDIMENT
- Taste & odour reduction: ABSILVER1025-5
• Min/max flow: 0 - 20 litres per minute
• Min/max temperature: 2 - 52°C
• Min/max pressure: 200 - 875 kPa
• Nominal micron rating: 1 micron
• Connection: garden hose

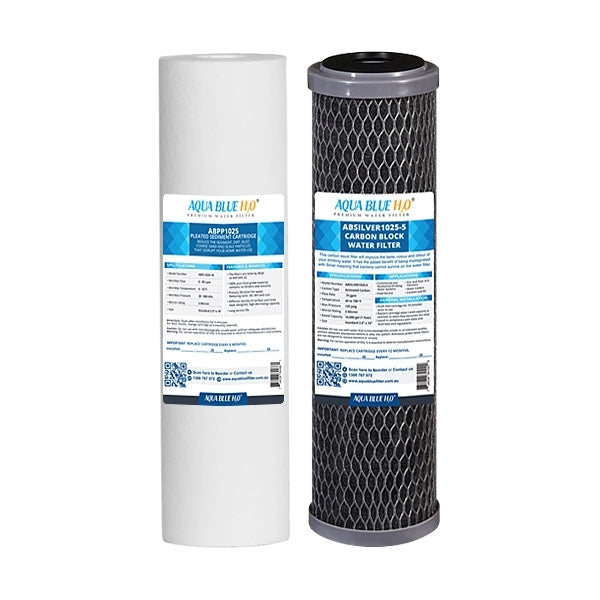

About Replacement Cartridge

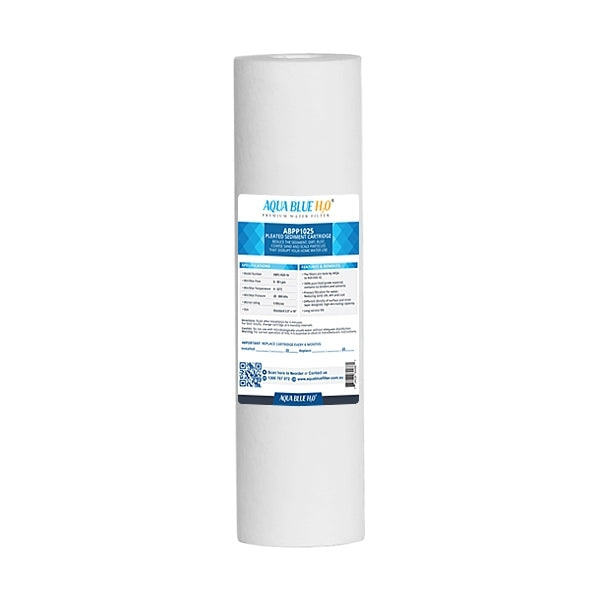

Polyspun Sediment Water Filter Cartridge

Model Number: ABPP1025
Fits in most standard 10" drop-in filter housing systems.
Used in residential, commercial, and food-service applications as a sediment filter or pre-filter.
10 x 2.5 Sediment replacement filter 5 micron x1
Suits all standard 10 inch housings
Premium filtration poly spun
Suitable for countertop or undersink water filter models

Features & Benefits

• Manufactured from 100% pure polypropylene fibers
• Filters out larger dirt and rust particles
• High dirt-holding capacity and superior sediment filtration
• Excellent bacteria and chemical resistance
• Extends the life of primary filter cartridges
• 100% Polypropylene material for wide chemical compact
• True multi-layered depth filtration
*Pressure drop will be determined based on feed water pressure, filter cartridge selection and port sizes, fluid viscosity, filter life and conditions

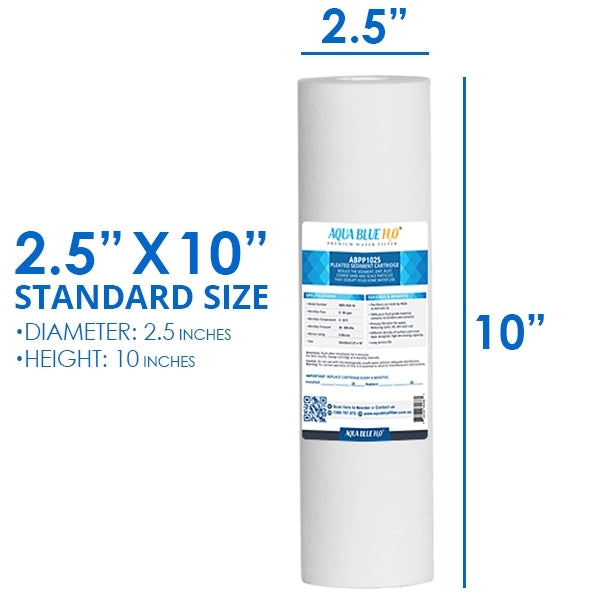

10" Polyspun Sediment Water Filter Cartridge 5 Mic

ABPP1025 Specification
• Operating Flow: 0 - 90 Lpm
• Operating Temperature: 4 - 52°C
• Operating Pressure: 20 - 800 kPa
• Micron Rating: 5 Micron
• Size: Standard 2.5” x 10”

Stage 1 Pleated Antibacterial Sediment filter (1um):

Reduces sediment, dirt, rust, algae, turbidity and other particulate contaminants.

Shield Sediment Filters are manufactured from pure 100% polypropylene fibers.The polypropylene construction

provides superior chemical resistance and does not breed bacterial.

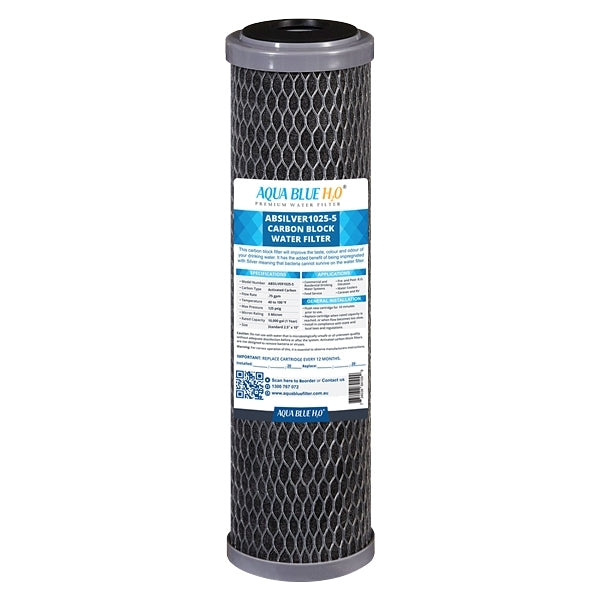

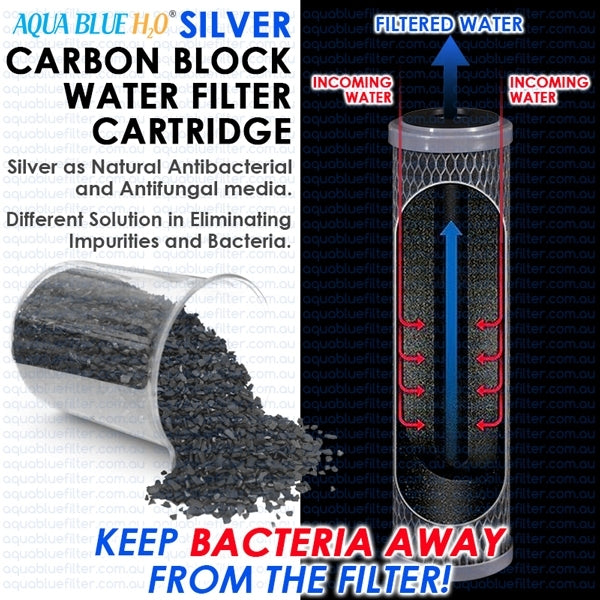

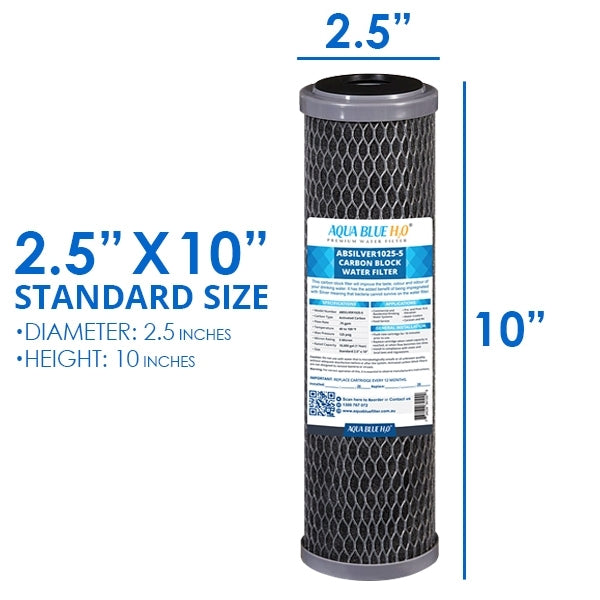

Silver Carbon Block Filter Cartridge
Standard 2.5” x 10”, 5 Micron

Features & Benefits
Silver as natural antibacterial and antifungal media.
Different solution in eliminating impurities and bacteria.
Keep bacteria away from the filter.
100% Factory checked ready for quick and reliable installation.

General Installation
1. Flush new cartridge for 10 minutes prior to use.
2. Replace cartridge when rated capacity is reached, or when flow becomes too slow.
3. Install in compliance with state and local laws and regulations.

Stage 2 Nano Silver Coconut Carbon Block Filter (0.5um) :

Remove sediment, particles, chemical, heavy metal and some colour extraction. Slightly taste achieved.

Shield Carbon Block Filters are manufactured using a powdered COCONUT activated carbon with a specially designed adsorbent media for

chemical and reduce chlorine taste & odor and other contaminants. 5um carbon block cartridges help reduce sediment- not reducing water flow .

Specifications
- Model Number: ABSILVER1025-5
- Carbon Type: Activated Carbon
- Flow Rate: .75 gpm
- Operating Temperature: 40 - 100 ºF
- Max. Pressure: 125 psig
- Micron Rating: 5 Micron
- Size: Standard 2.5” x 10”

Directions: Flush after installation for 5 minutes. For best results, change cartridge at 6 monthly intervals.
Caution: Do not use with microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe manufacturers instructions.

DIVERTER-1412

The valves are for use with potable water. The valves are not to be used with compressed air, explosive gases, petroleum spirit and other fuels or for heating system.

Features:

• Push – fit technology

• Quick disconnection without the need for tools.

• EPDM ‘o’ rings

•  Intended for use with potable water

• Incorporates integral style check valve and a ¼ turn chrome plated ball valve
