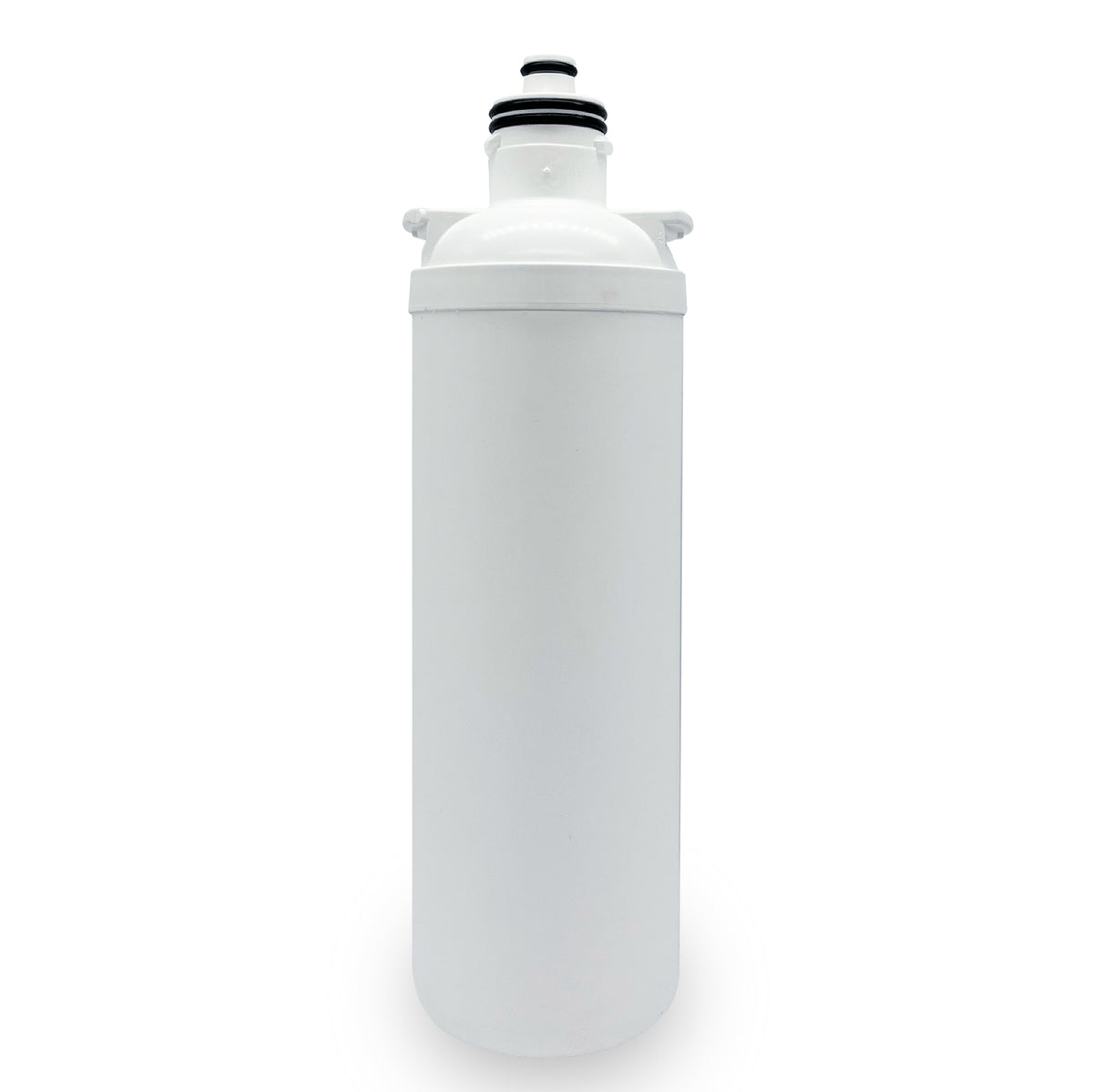

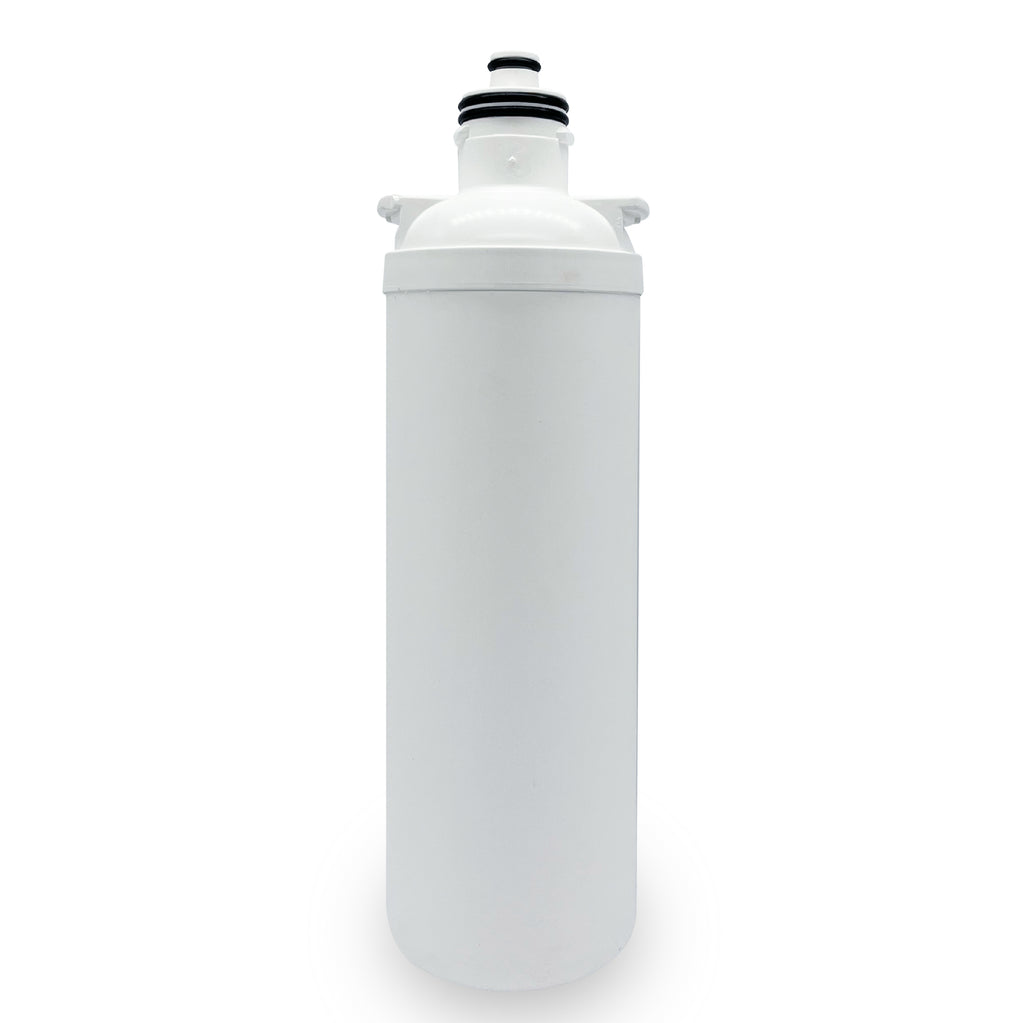

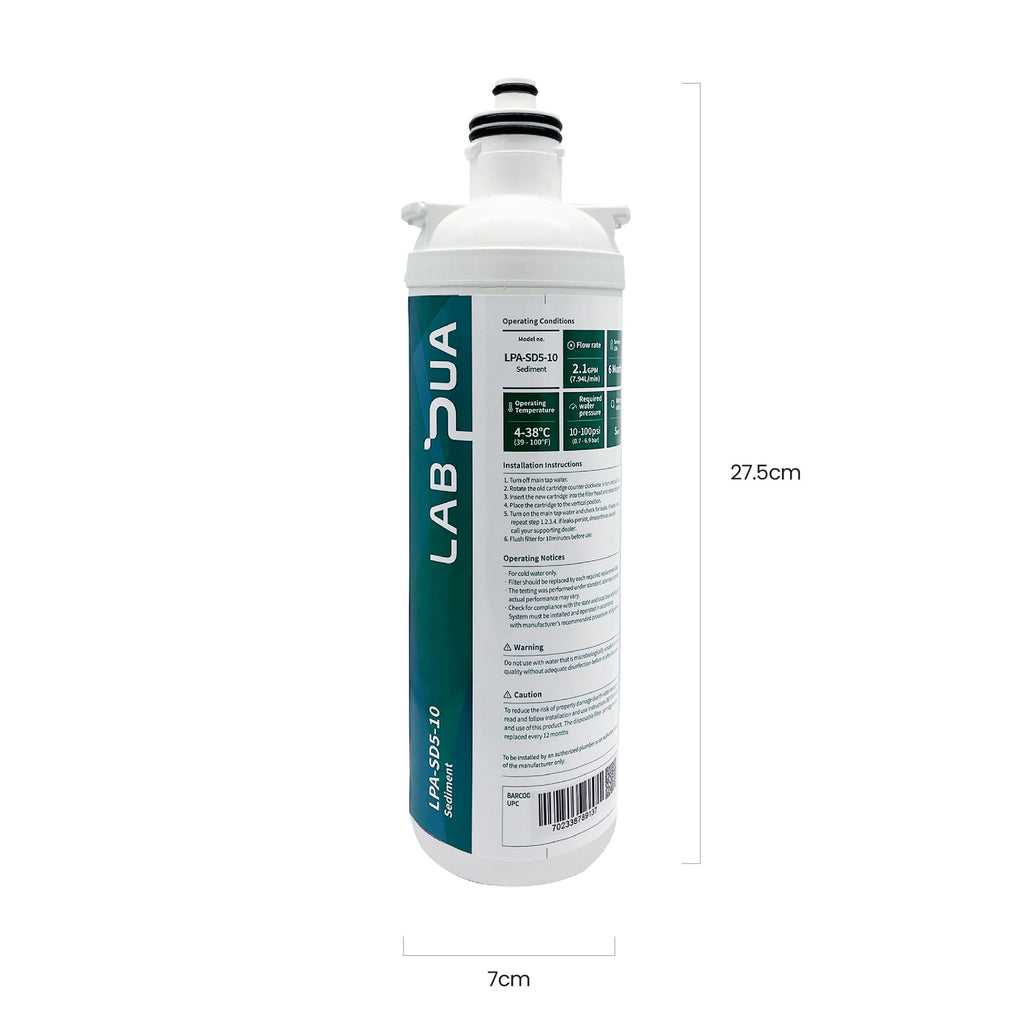

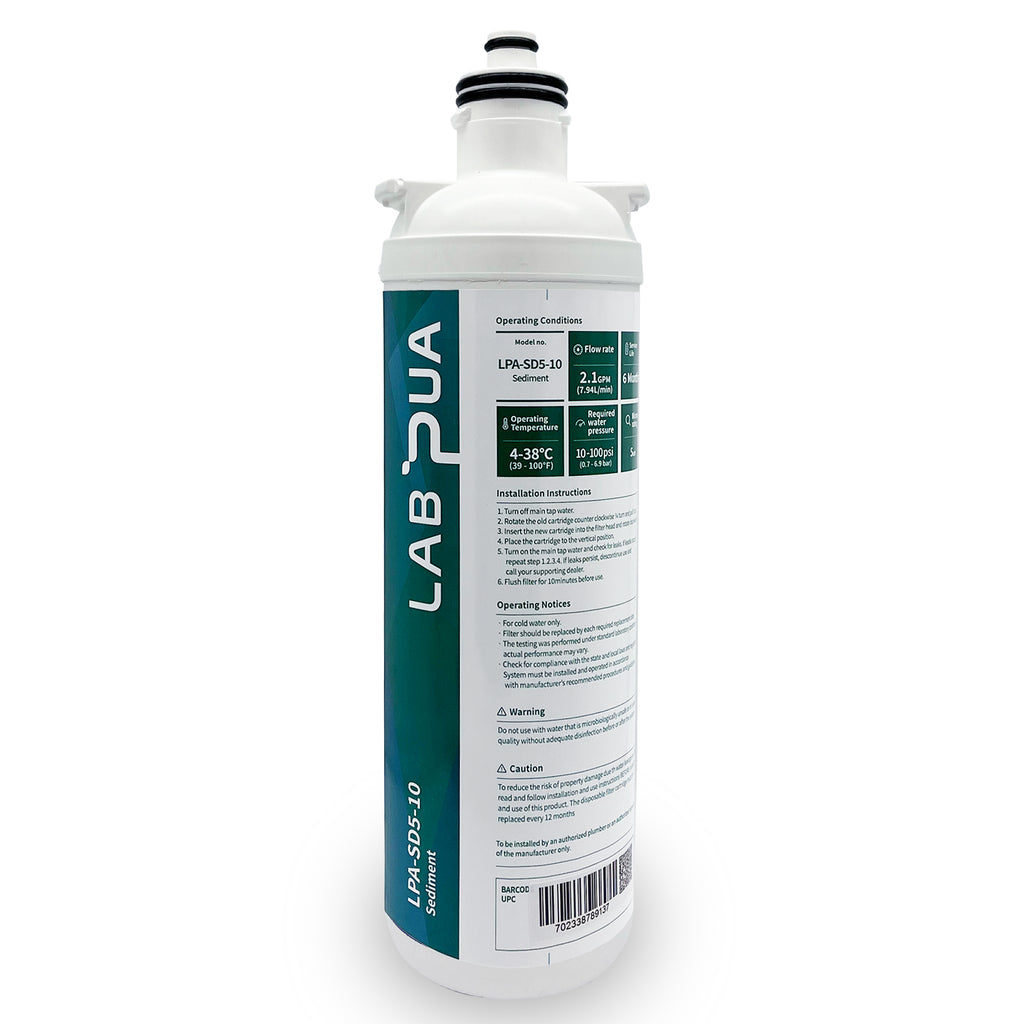

LPA SD5 10

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity

13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″
• Cartridge: Ø3.3″ × 10.7″

Weight
0.6 kg

Claim

• Particle
• Dust
• Sand, etc.

FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)

• Can remove up to 5micron particles through mechanical method.

• Replacement method is very simple, quick and clean.

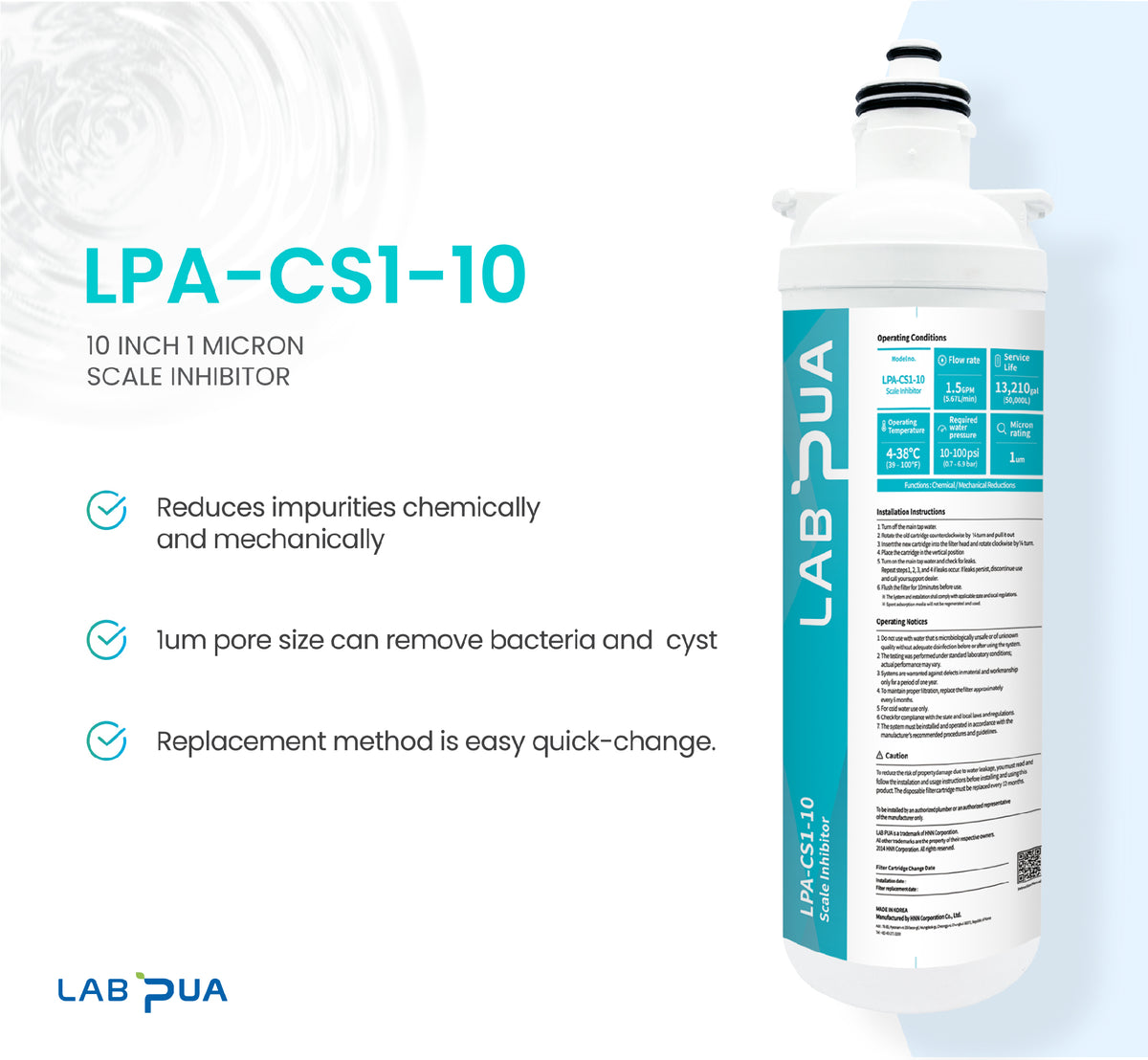

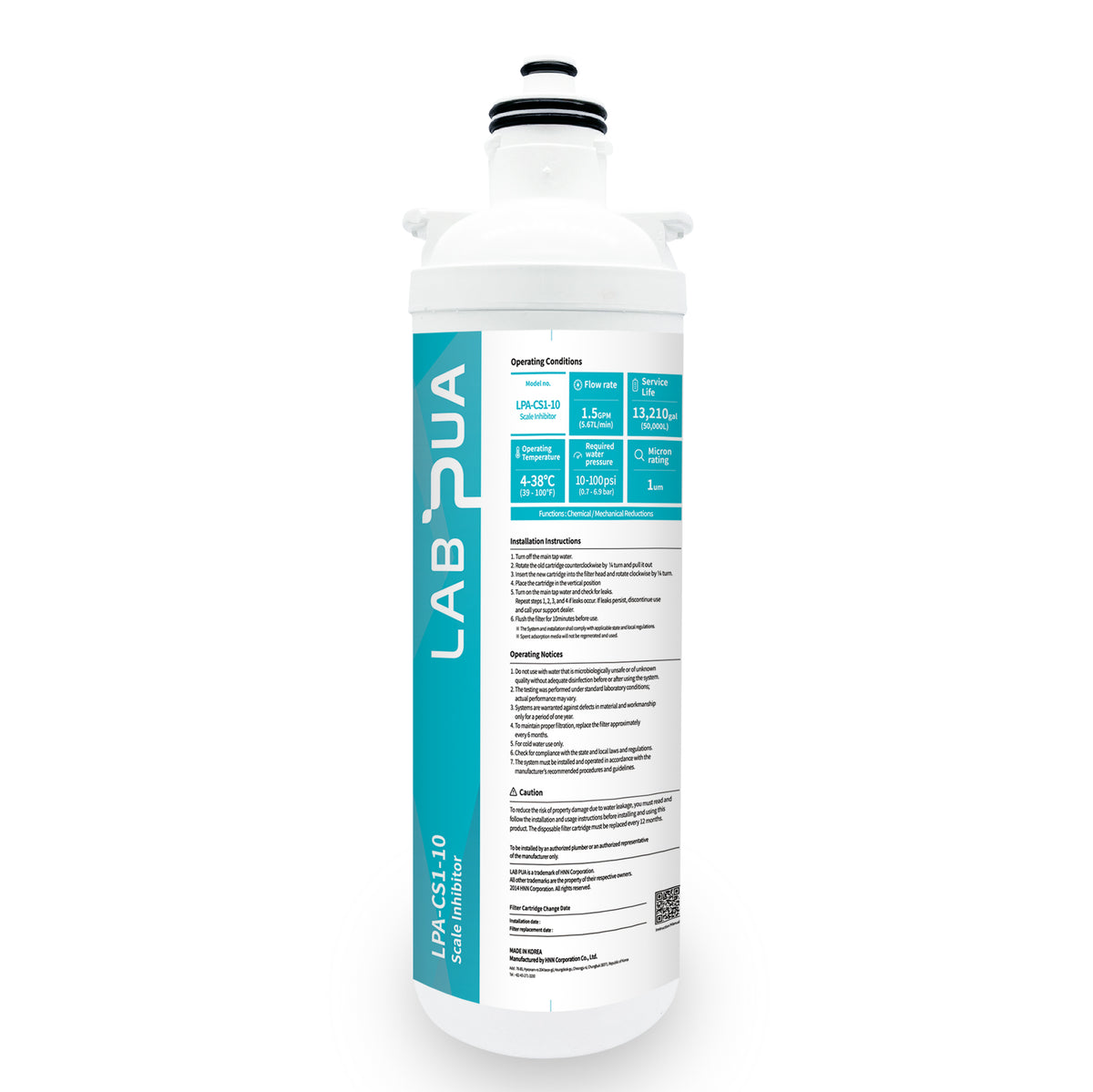

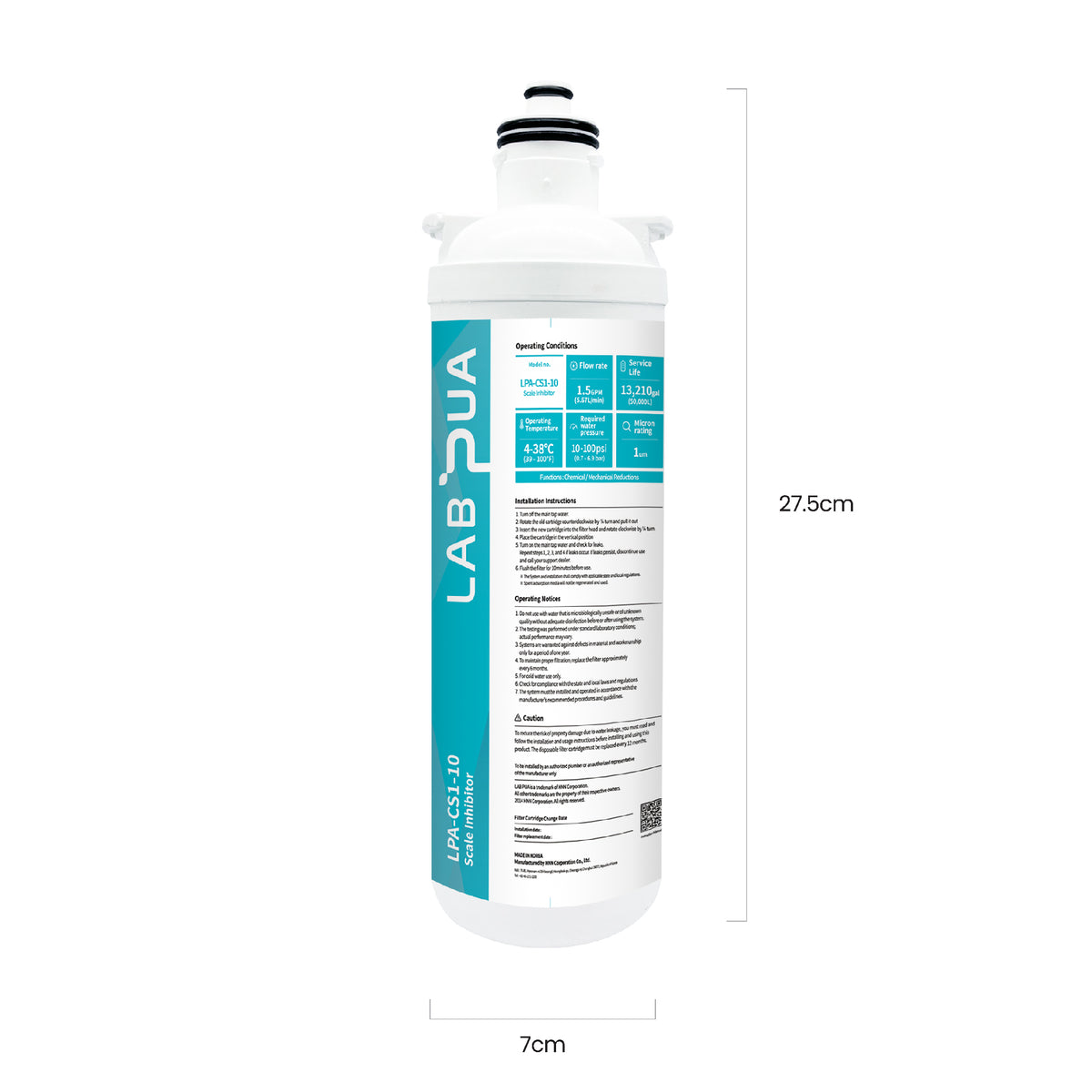

LPA-CS1-10

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8"

Electrical Connection
None required

Dimension

• Overall: 3.7" × 12.5"
• Cartridge: Ø3.3" × 10.7"

Weight
0.6 kg

Claim

• Chlorine
• Taste and Odor
• Particulate
• Bacteria & Cyst
• (Optional: Scale Inhibitor)
• Chemical / Mechanical Reductions

FEATURES · BENEFITS

• Reduces impurities chemically and mechanically
• 1 μm pore size can remove bacteria and cyst
• Quick and easy replacement with quick-change method

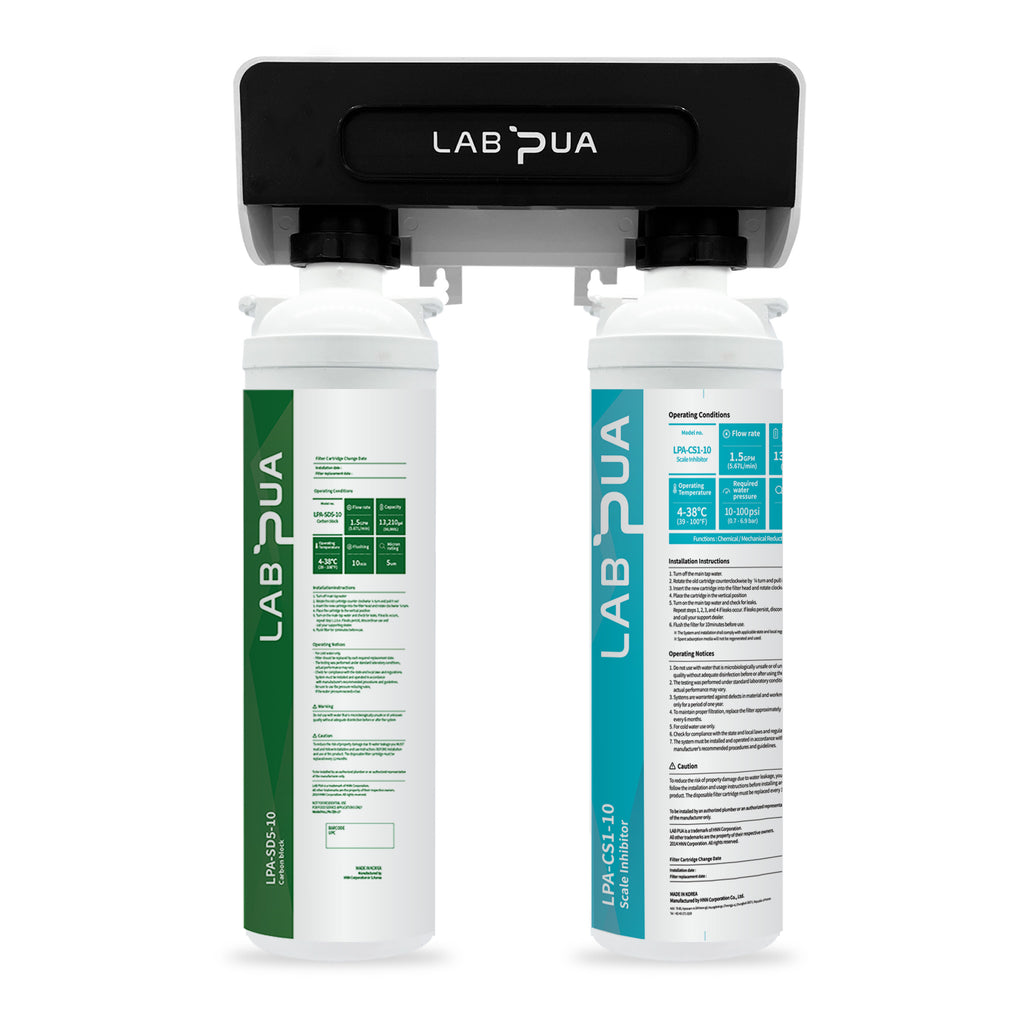

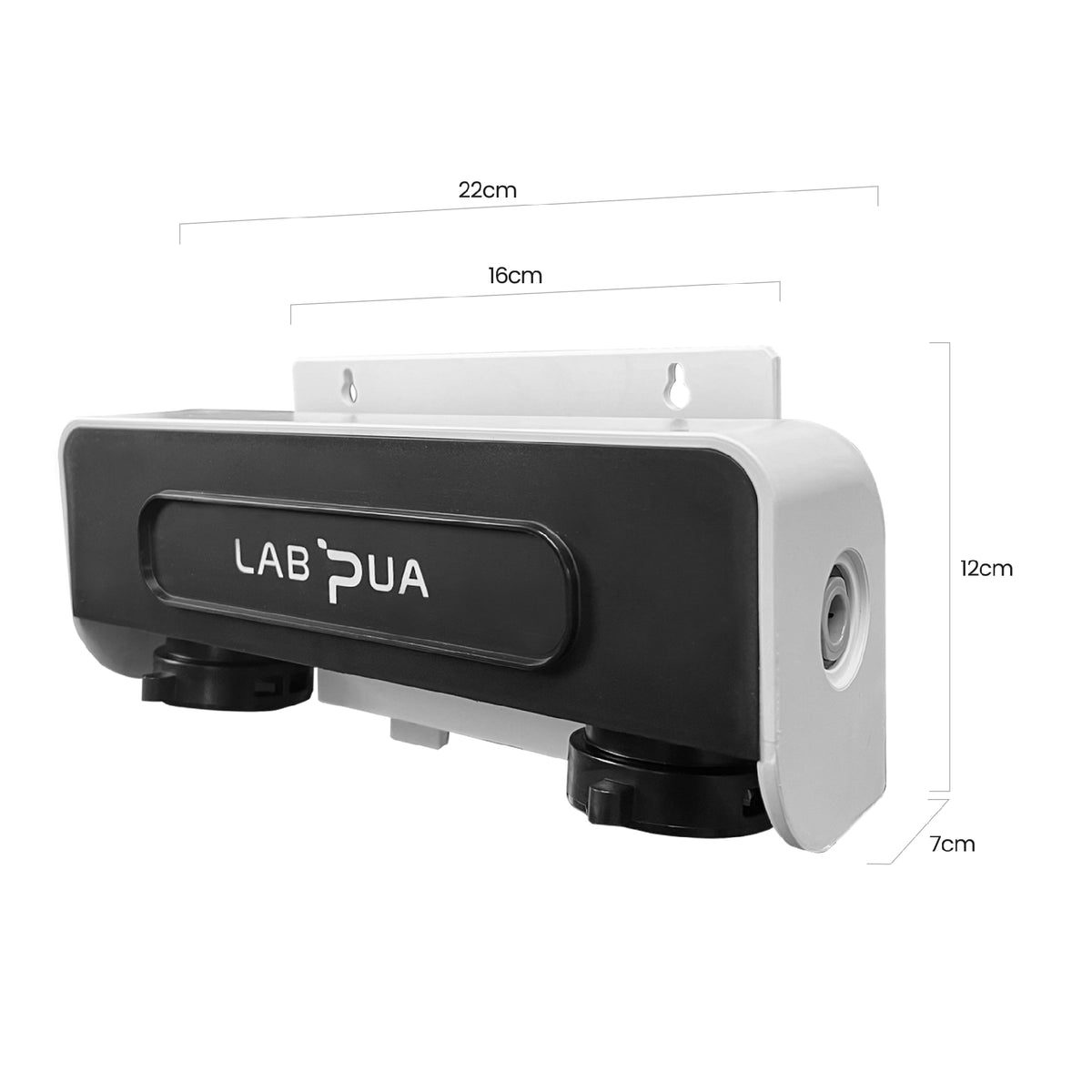

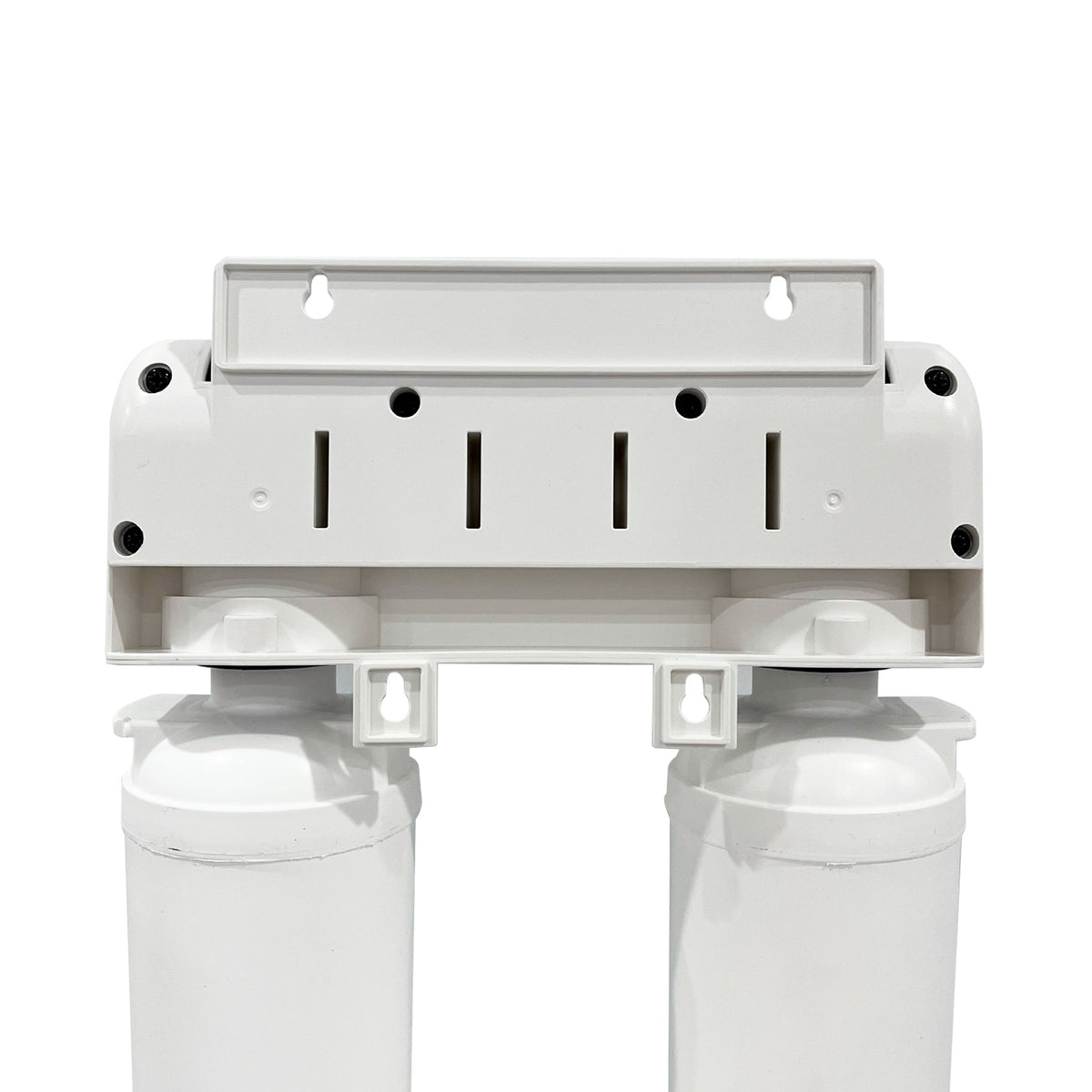

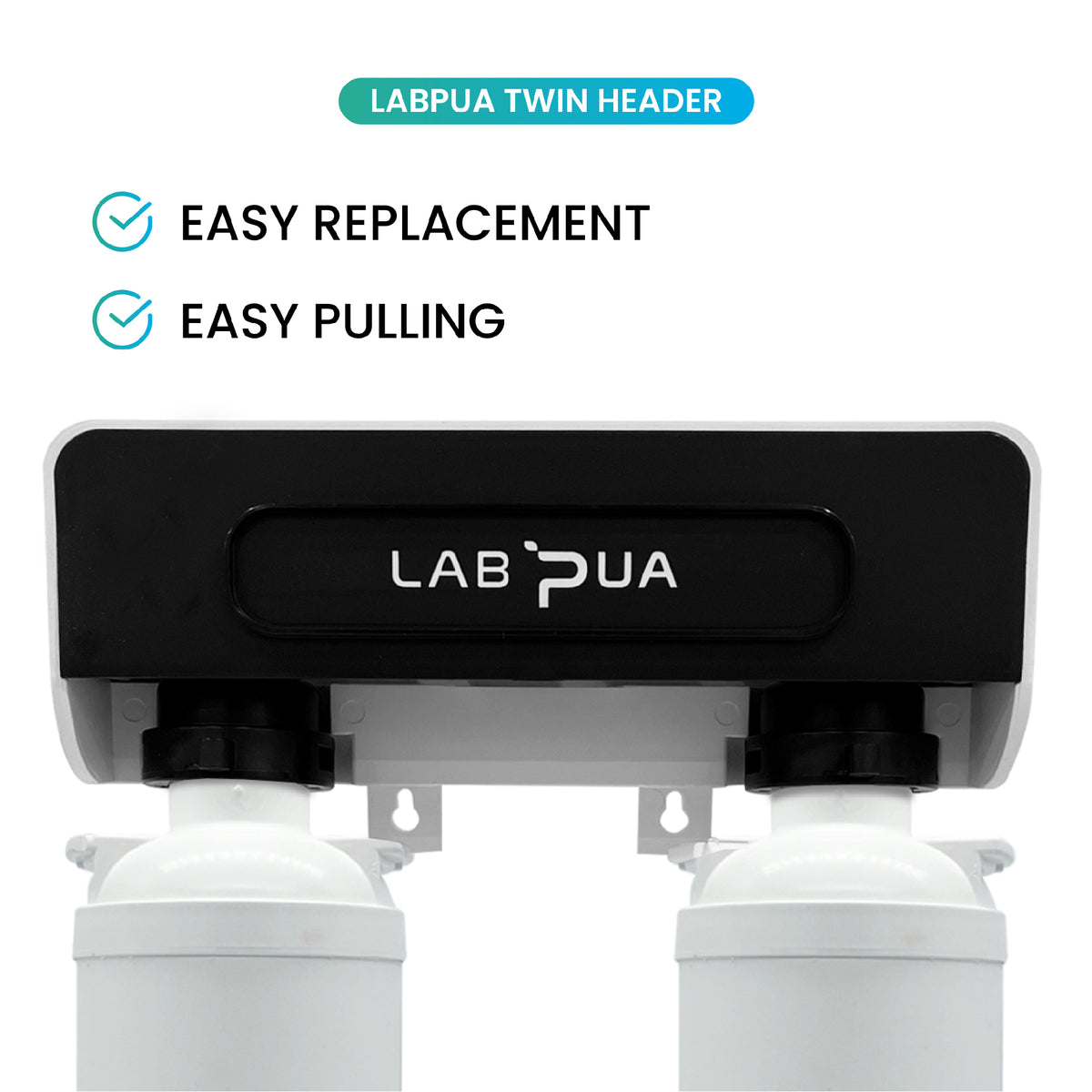

Lab pua Twin filter header that suit for Lab Pua filters.

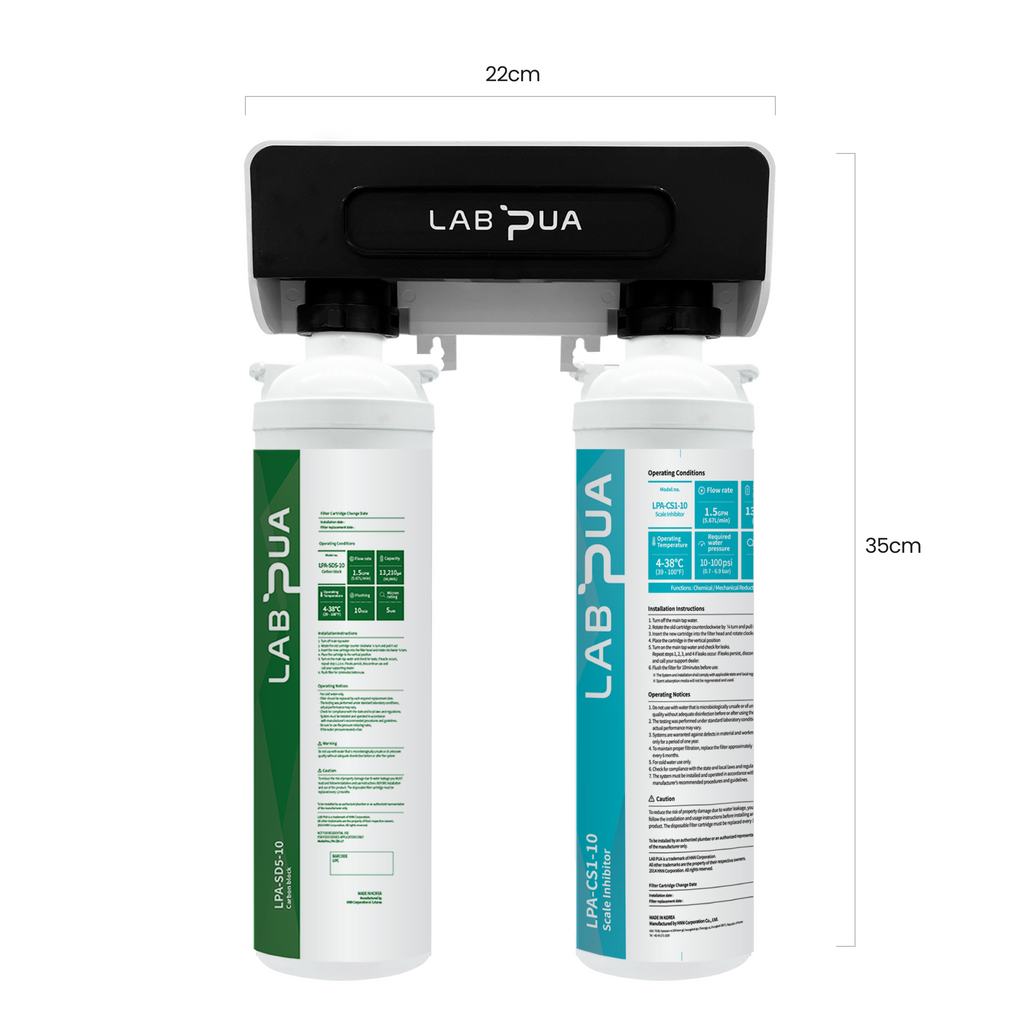

Introducing the LPA238QC Lab Pua Twin header, a high-performance filtration solution tailored for Lab Pua filters. This versatile twin filter header is engineered to provide efficient sediment filtration with a 0.1 Micron combination, ensuring superior filtration for your specific laboratory needs. Its innovative design and precision filtration capabilities make it an ideal choice for maintaining the purity and quality of your laboratory processes. Trust the Lab Pua Twin header for reliable and effective sediment filtration, meeting the stringent standards required for laboratory-grade filtration systems.
