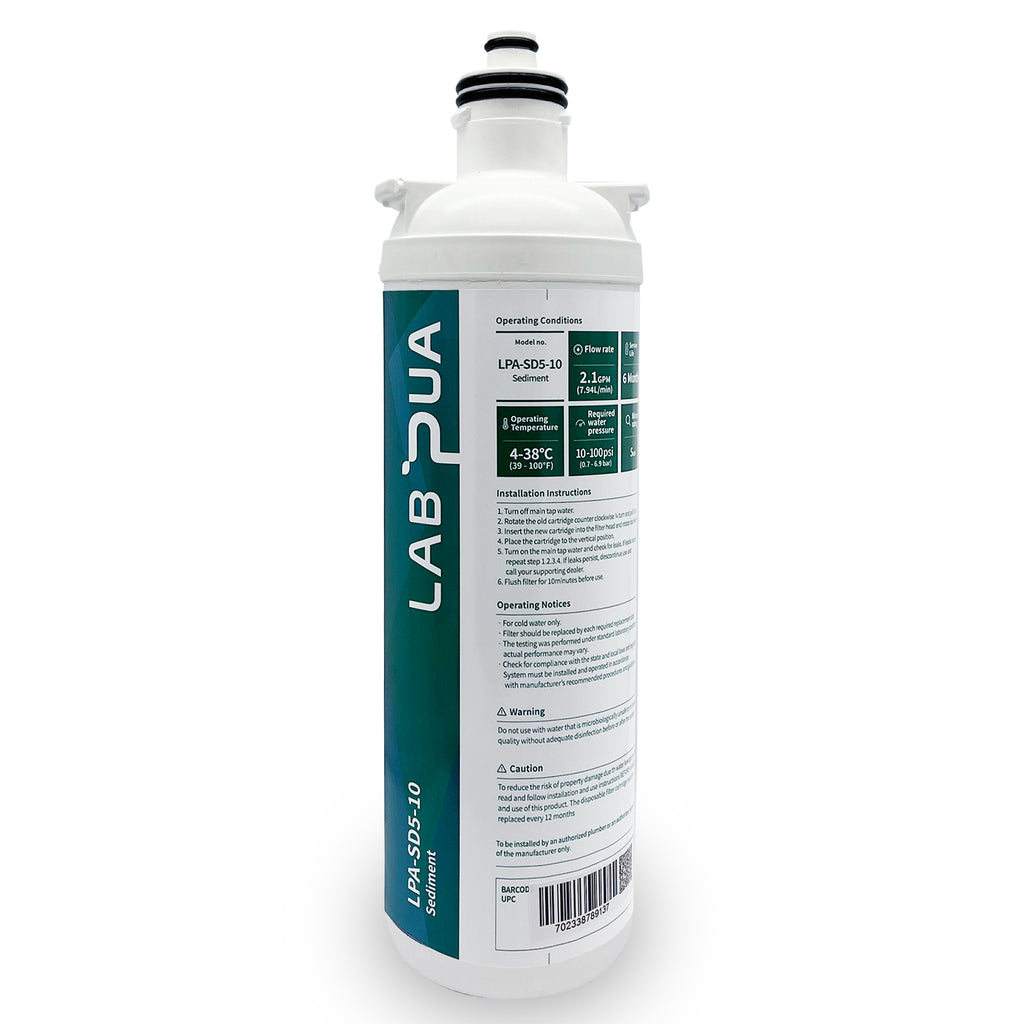

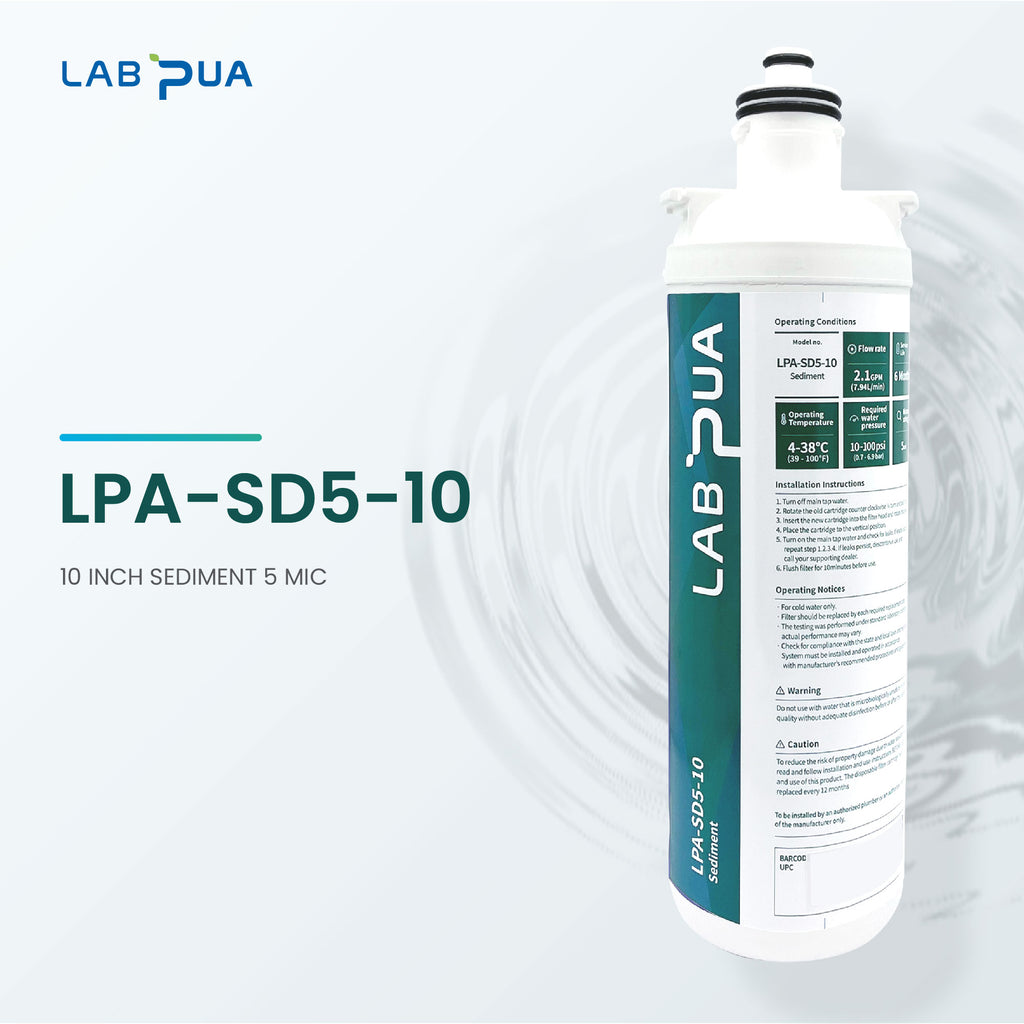

LPA SD5 10

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
6 Months

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8″

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″
• Cartridge: Ø3.3″ × 10.7″

Weight
0.6 kg

Claim
Particle, Dust, Sand, etc.

FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)
• Mechanically removes particles up to 5 microns
• Simple, quick, and clean replacement process

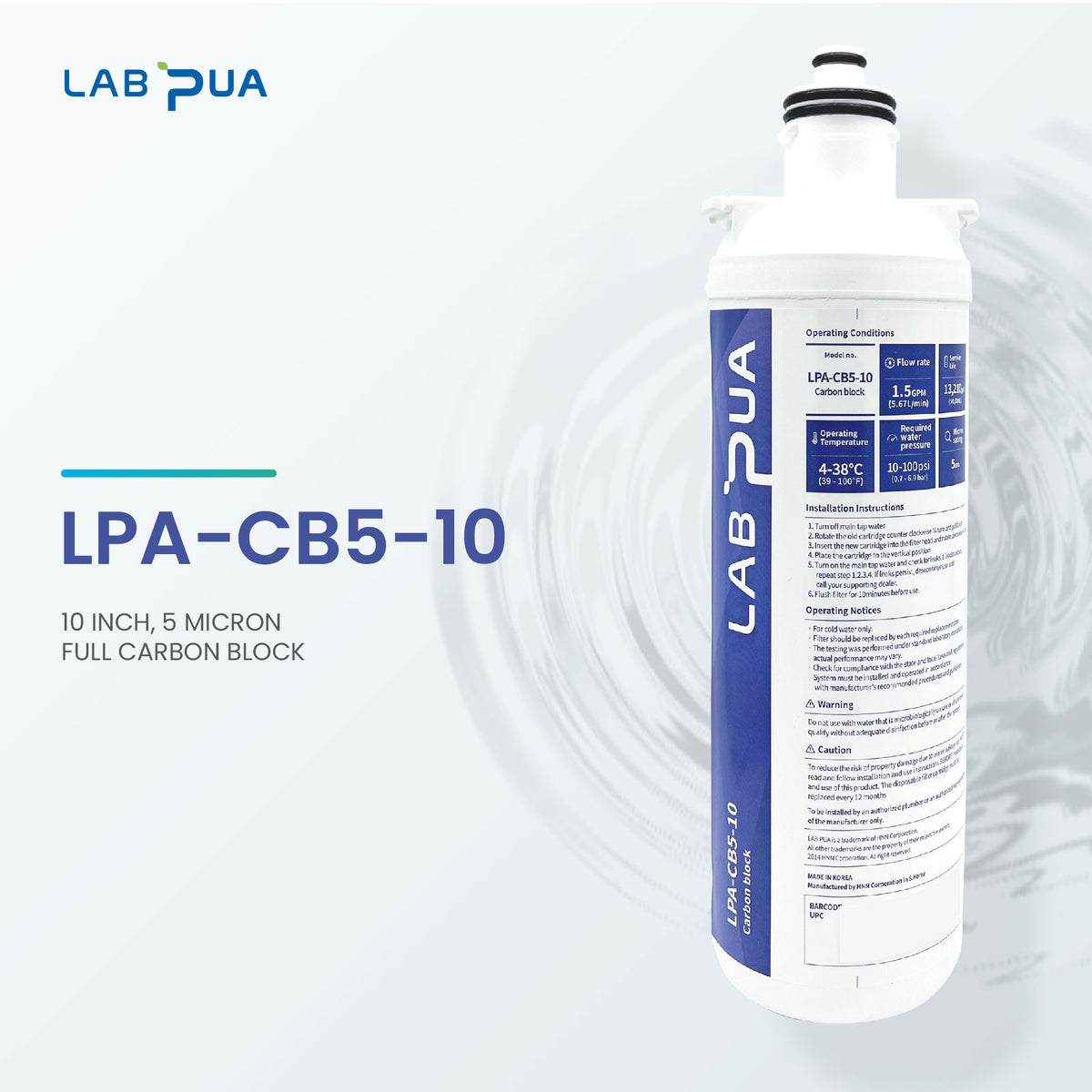

LPA CB5 10

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8"

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″
• Cartridge: Ø3.3″ × 10.7″

Weight
1.0 kg

Claim

• Chlorine
• Taste and Odor
• Particulate Class 3 (5 ~ 15 µm)

FEATURES · BENEFITS

• HNN’s carbon block is made with high-quality, high-quantity GAC, ensuring superior water quality and a higher capacity compared to competitors.
• 5-micron pore size CTO block
• Extrusion carbon manufacturing ensures consistent and stable quality
• Pre-shield technology helps prevent early clogging and extends cartridge life
• Quick-change design makes filter replacement simple and clean

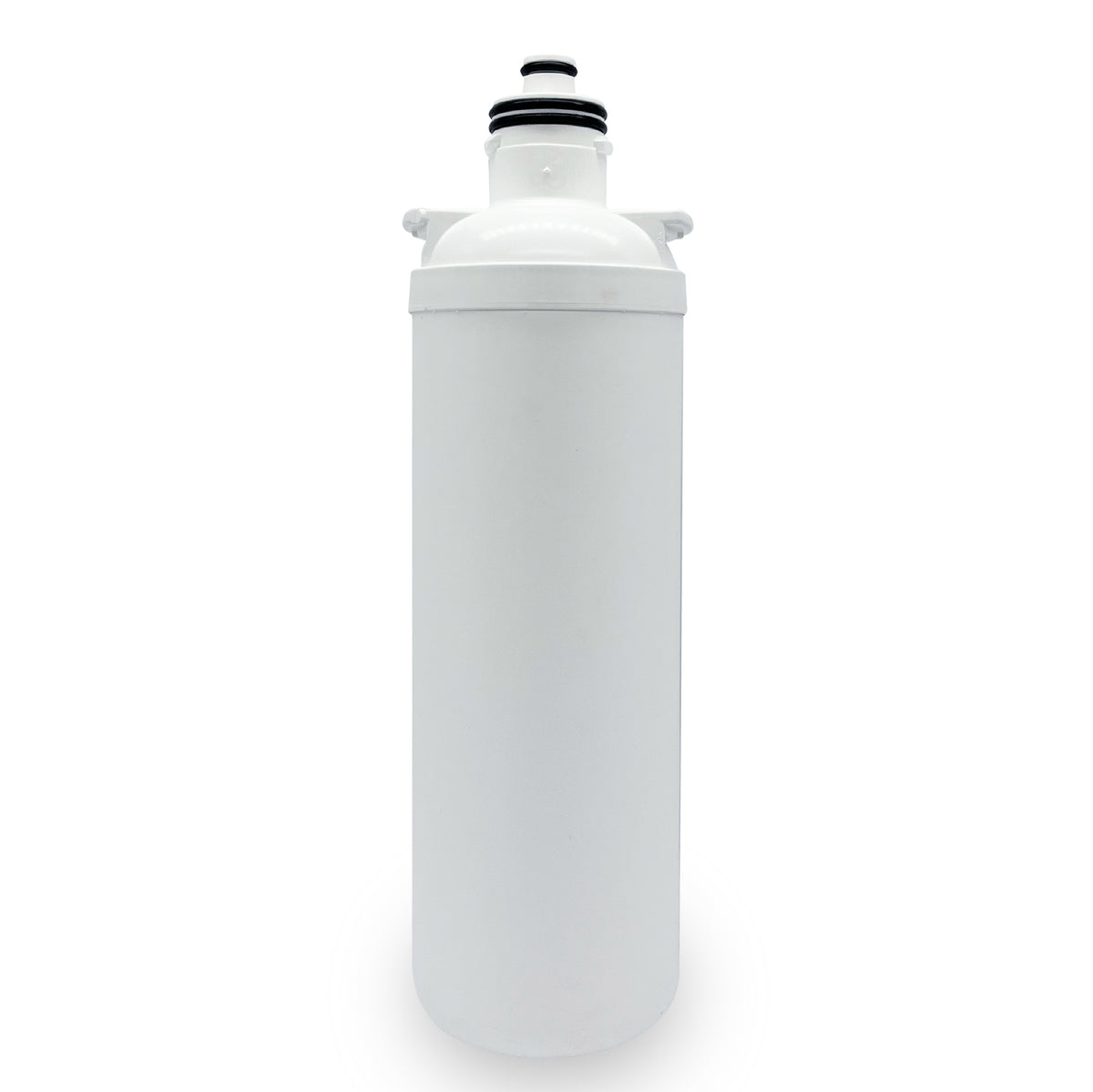

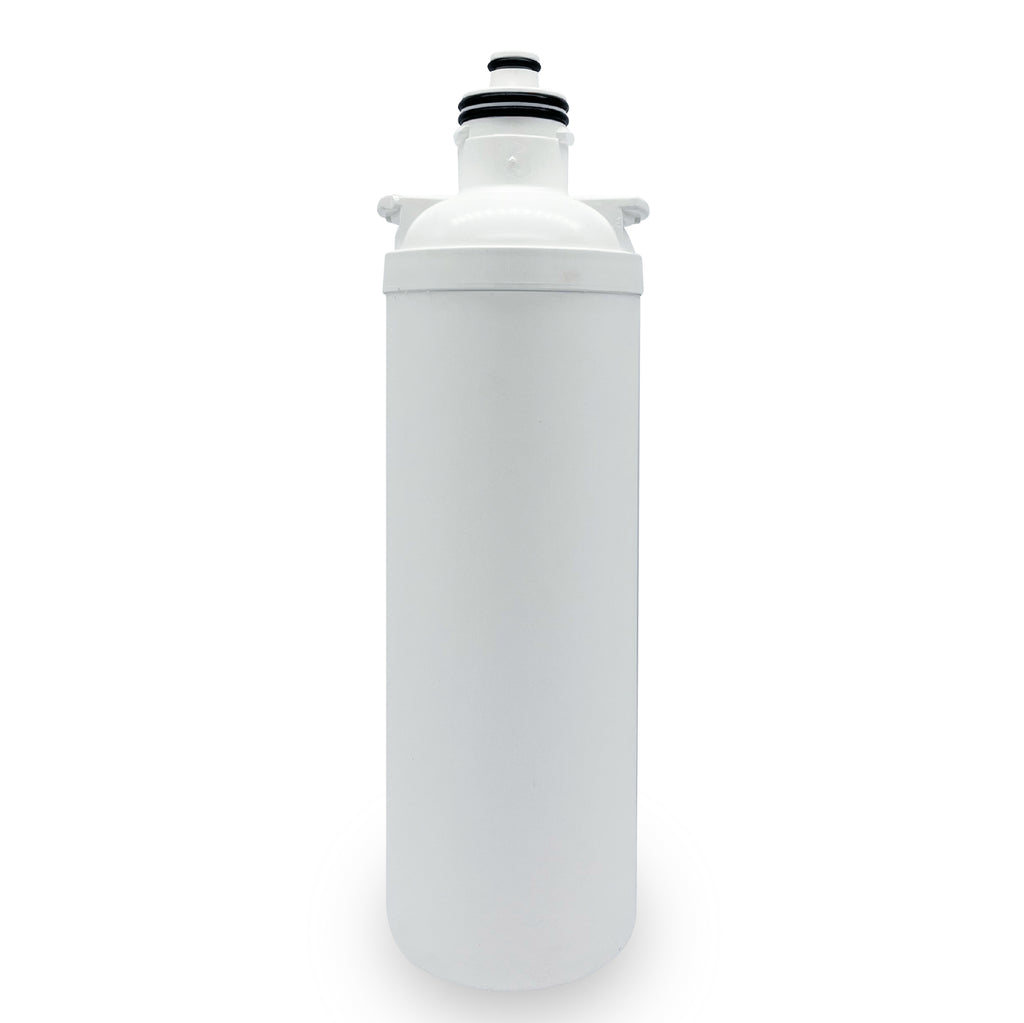

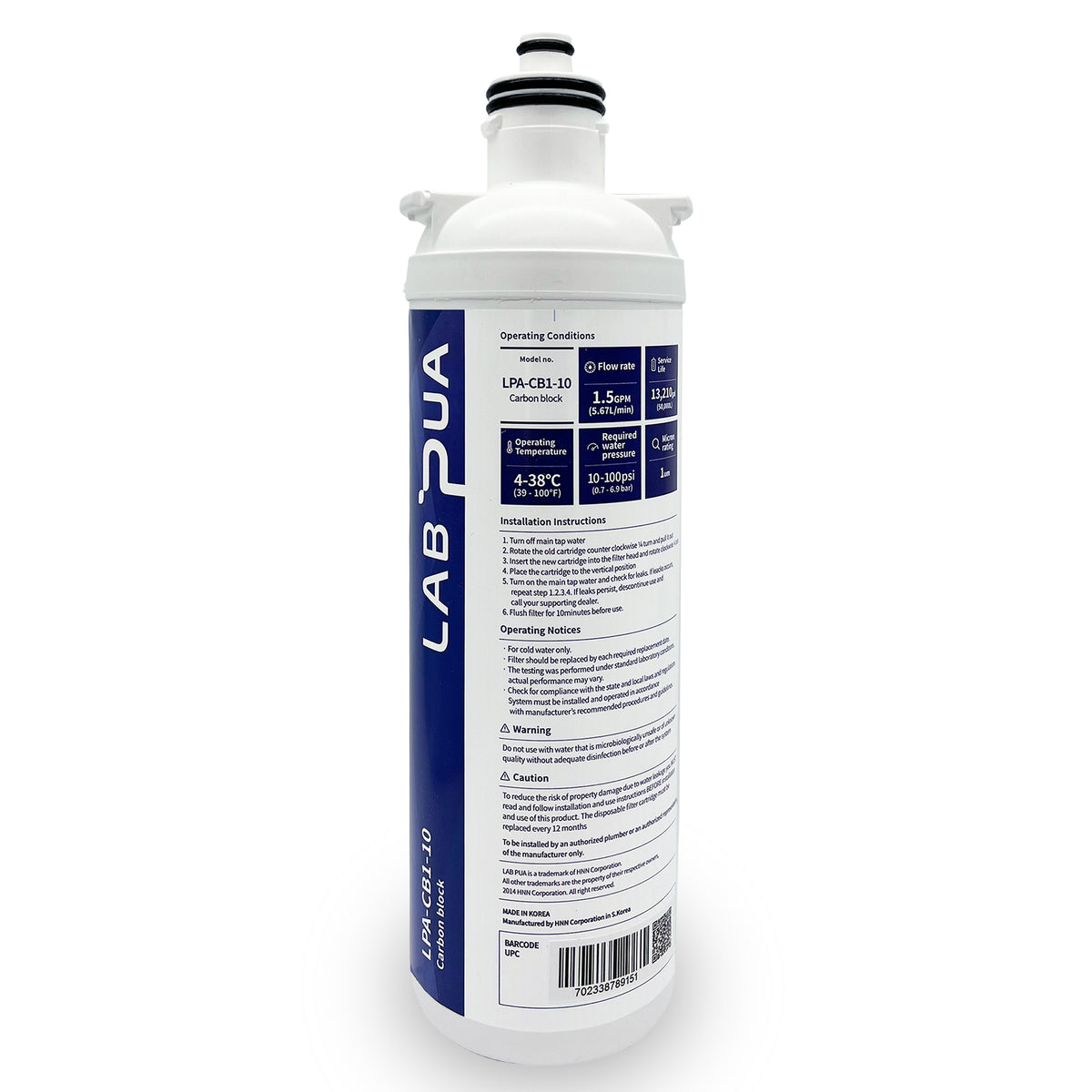

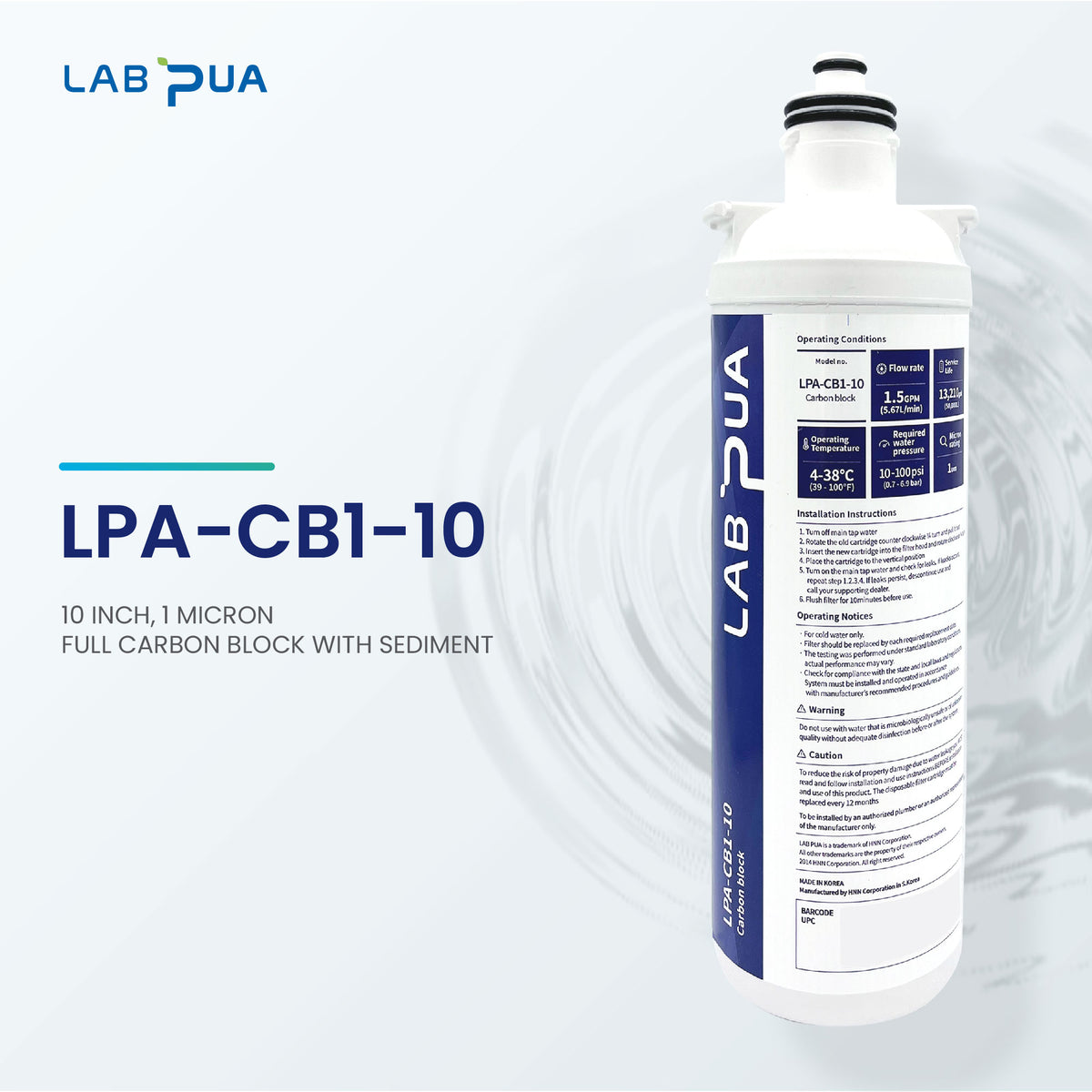

LPA CB1-10

SPECIFICATIONS

Service Flow Rate
1.5 GPM (5.67 L/min)

Rated Capacity
13,210 Gallons (50,000 L)

Operation Temperature
4 ~ 38℃ (39 ~ 100℉)

Pressure Requirements
10 ~ 100 psi (0.7 ~ 6.9 bar)

Inlet / Outlet Connection
3/8"

Electrical Connection
None required

Dimension

• Overall: 3.7″ × 12.5″
• Cartridge: Ø3.3″ × 10.7″

Weight
1.0 kg

Claim

• Chlorine
• Taste and Odor
• Particulate Class 1 (0.5 ~ 1.0 µm)

FEATURES · BENEFITS

• HNN’s carbon block is manufactured using high-quality and high-quantity GAC, delivering superior water quality and a higher capacity compared to competitors.
• 1-micron pore size CTO block
• Extrusion carbon production method ensures consistent and stable performance
• Pre-shield technology helps prevent premature clogging and extends cartridge lifespan
• Quick-change design allows for easy and clean filter replacement
