Lab Pua Residential Under Sink Switch Filter Kit 17 Inch Series

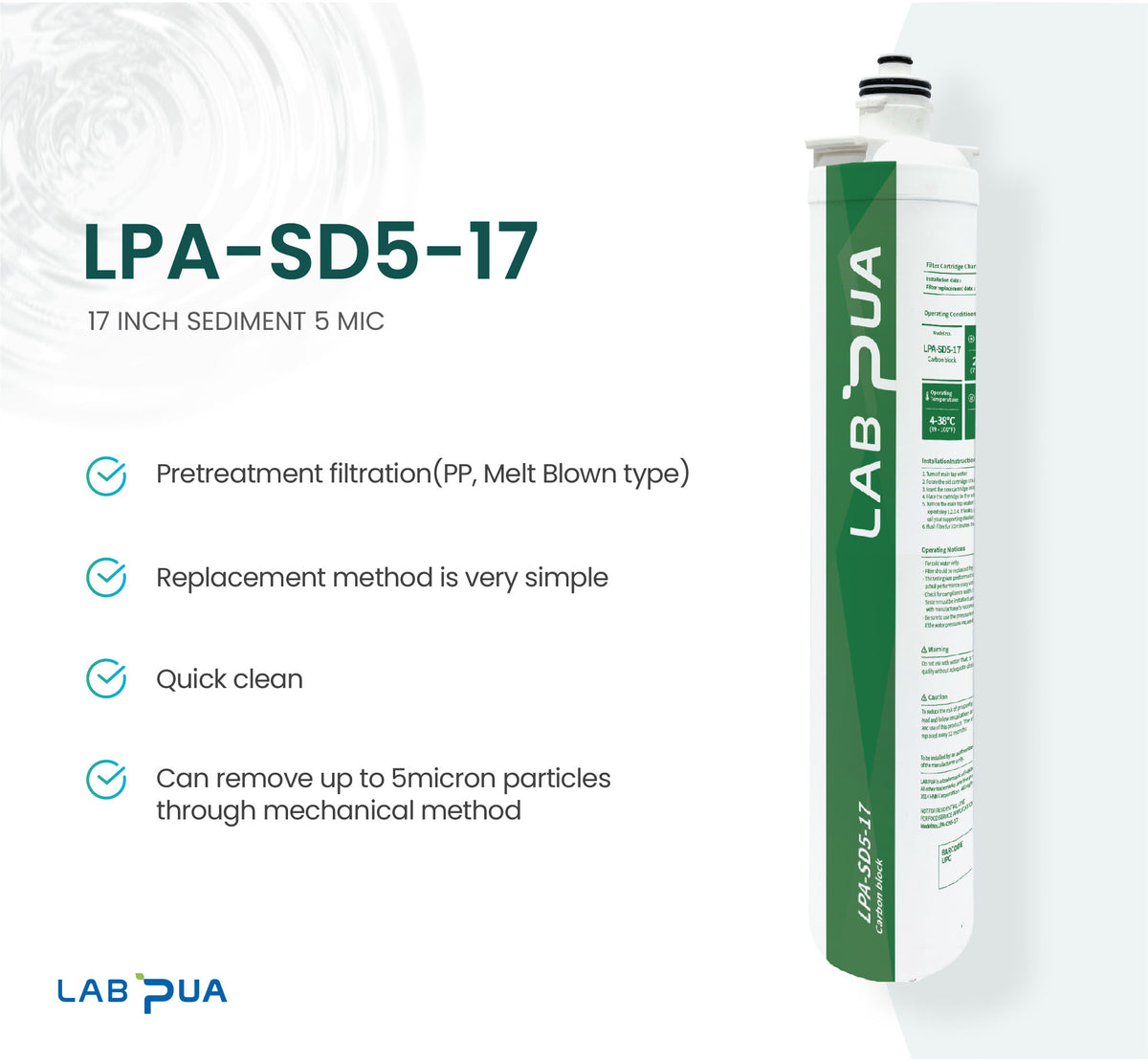

LPA SD5 17

SPECIFICATIONS

• Service Flow Rate: 2.5 GPM (7.94 L/min)
• Rated Capacity: 21,000 Gallons (79,484 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 18.8″
  • Cartridge: Ø3.3″ × 17.4″
• Weight: 0.7 kg
• Claims:
  • Effective removal of particles, dust, sand, and similar impurities

FEATURES · BENEFITS

• Pretreatment filtration (PP, Melt Blown Type)

• Can remove up to 5micron particles through mechanical method.

• Replacement method is very simple, quick and clean.

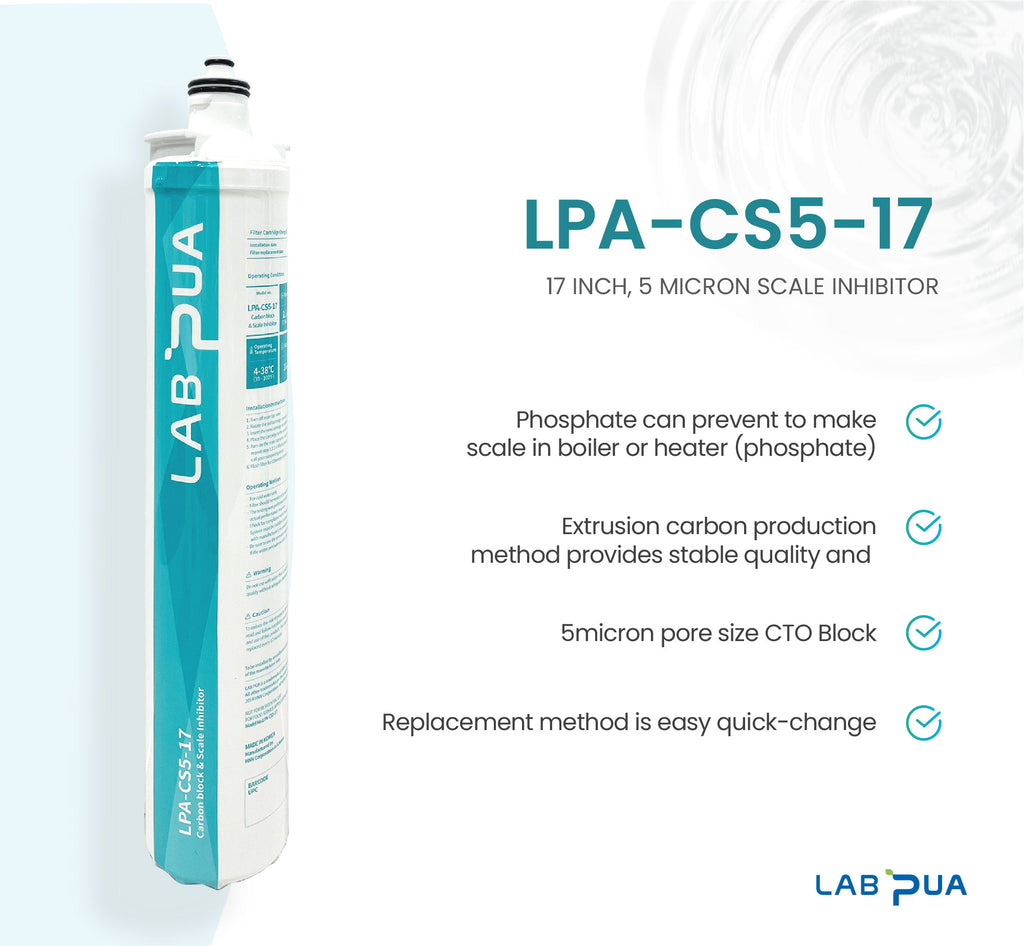

LPA CS5 17

SPECIFICATIONS

• Service Flow Rate: 2.1 GPM (7.94 L/min)
• Rated Capacity: 21,000 Gallons (79,484 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 18.8″
  • Cartridge: Ø3.3″ × 17.4″
• Weight: 1.1 kg
• Claims:
  • Chlorine Reduction
  • Taste and Odor Improvement
  • Particulate Filtration
  • Scale Inhibitor

FEATURES · BENEFITS

• Phosphate can prevent to make scale in boiler or heater (phosphate)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

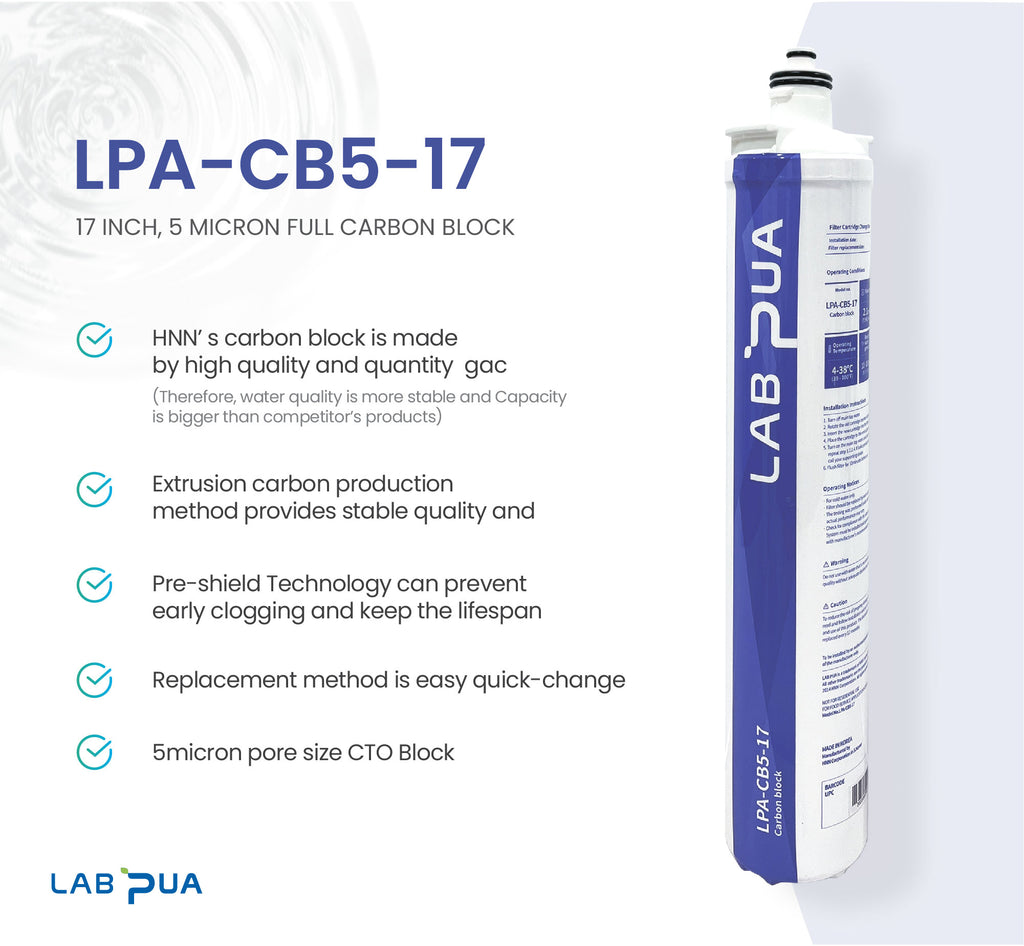

LPA-CB5-17

SPECIFICATIONS

• Service Flow Rate: 2.1 GPM (7.94 L/min)
• Rated Capacity: 21,000 Gallons (79,484 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 18.8″
  • Cartridge: Ø3.3″ × 17.4″
• Weight: 1.0 kg
• Claims:
  • Chlorine Reduction
  • Taste and Odor Improvement
  • Particulate Class 1 Filtration (0.5–1.0 µm)

FEATURES · BENEFITS

• HNN’ s carbon block is made by high quality and quantity gac.

(Therefore, water quality is more stable and Capacity is bigger than competitor’s products)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

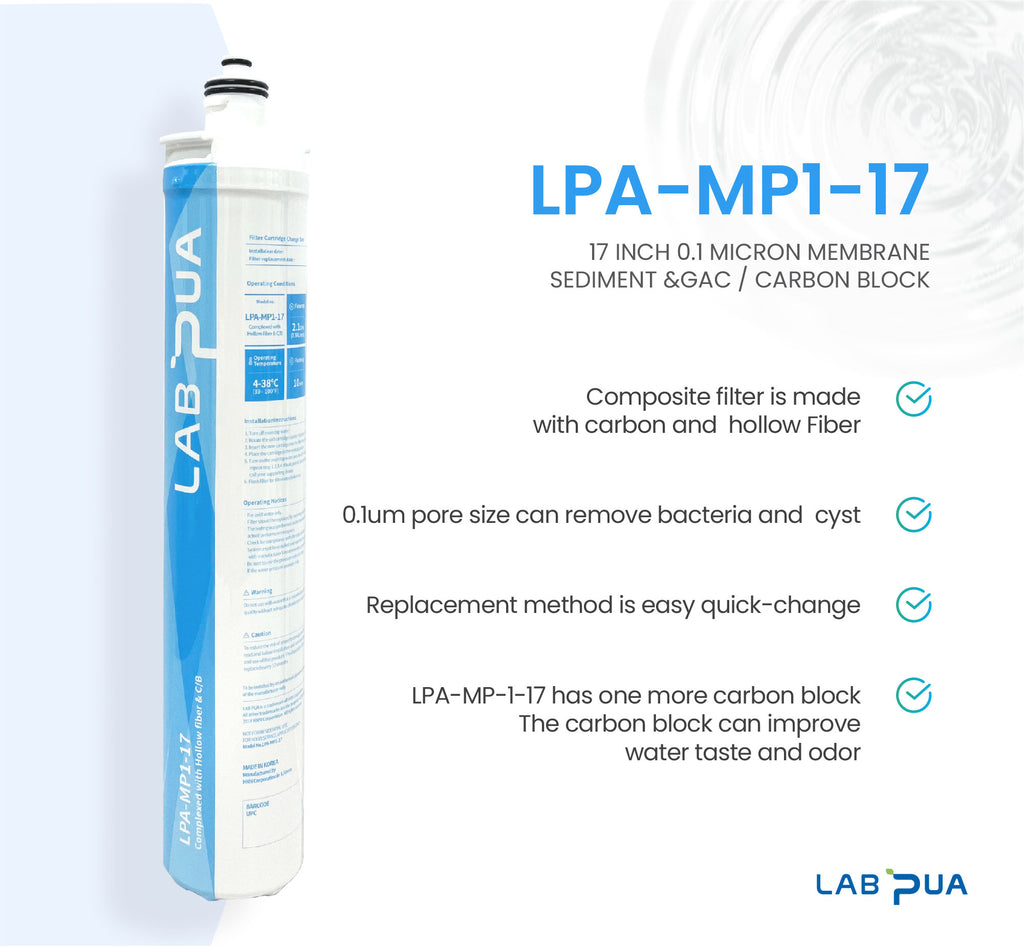

LPA-MP1-17

SPECIFICATIONS

• Service Flow Rate: 2.1 GPM (7.94 L/min)
• Rated Capacity: 21,000 Gallons (79,484 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 18.8″
  • Cartridge: Ø3.3″ × 17.4″
• Weight: 0.85 kg
• Claims:
  • Chlorine Reduction
  • Taste and Odor Improvement
  • Particulate Filtration
  • Bacteria & Cyst Reduction

FEATURES · BENEFITS

• Composite filter is made with carbon and hollow Fiber

• 0.1um pore size can remove bacteria and cyst

• LPA-MP-1-17 has one more carbon block . The carbon block can improve water taste and odor

• Replacement method is easy quick-change

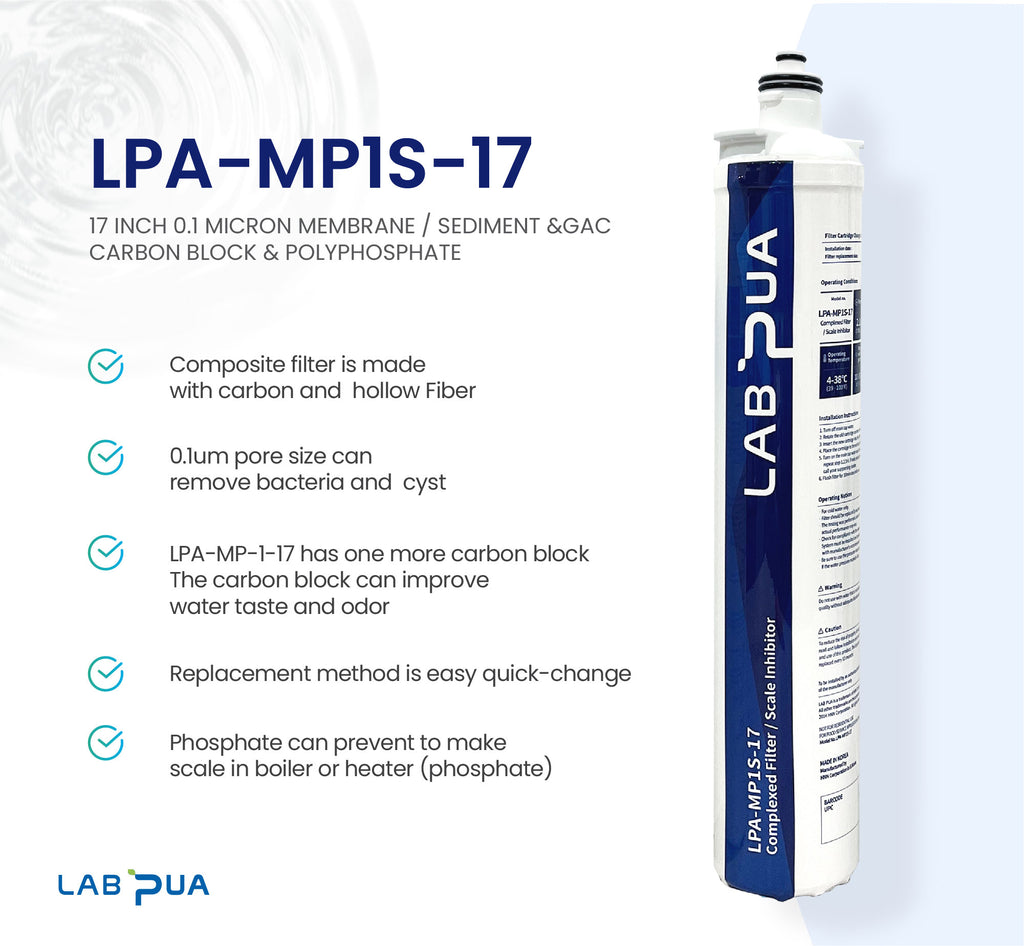

LPA-MP1S-17

SPECIFICATIONS

• Service Flow Rate: 2.1 GPM (7.94 L/min)
• Rated Capacity: 21,000 Gallons (79,484 L)
• Operating Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 18.8″
  • Cartridge: Ø3.3″ × 17.4″
• Weight: 0.95 kg
• Claims:
  • Chlorine Reduction
  • Taste and Odor Improvement
  • Particulate Filtration
  • Bacteria & Cyst Reduction
  • Scale Inhibitor

FEATURES · BENEFITS

• Composite filter is made with carbon and hollow Fiber

• 0.1um pore size can remove bacteria and cyst

• LPA-MP-1-17 has one more carbon block . The carbon block can improve water taste and odor

• Replacement method is easy quick-change.

• Phosphate can prevent to make scale in boiler or heater (phosphate)

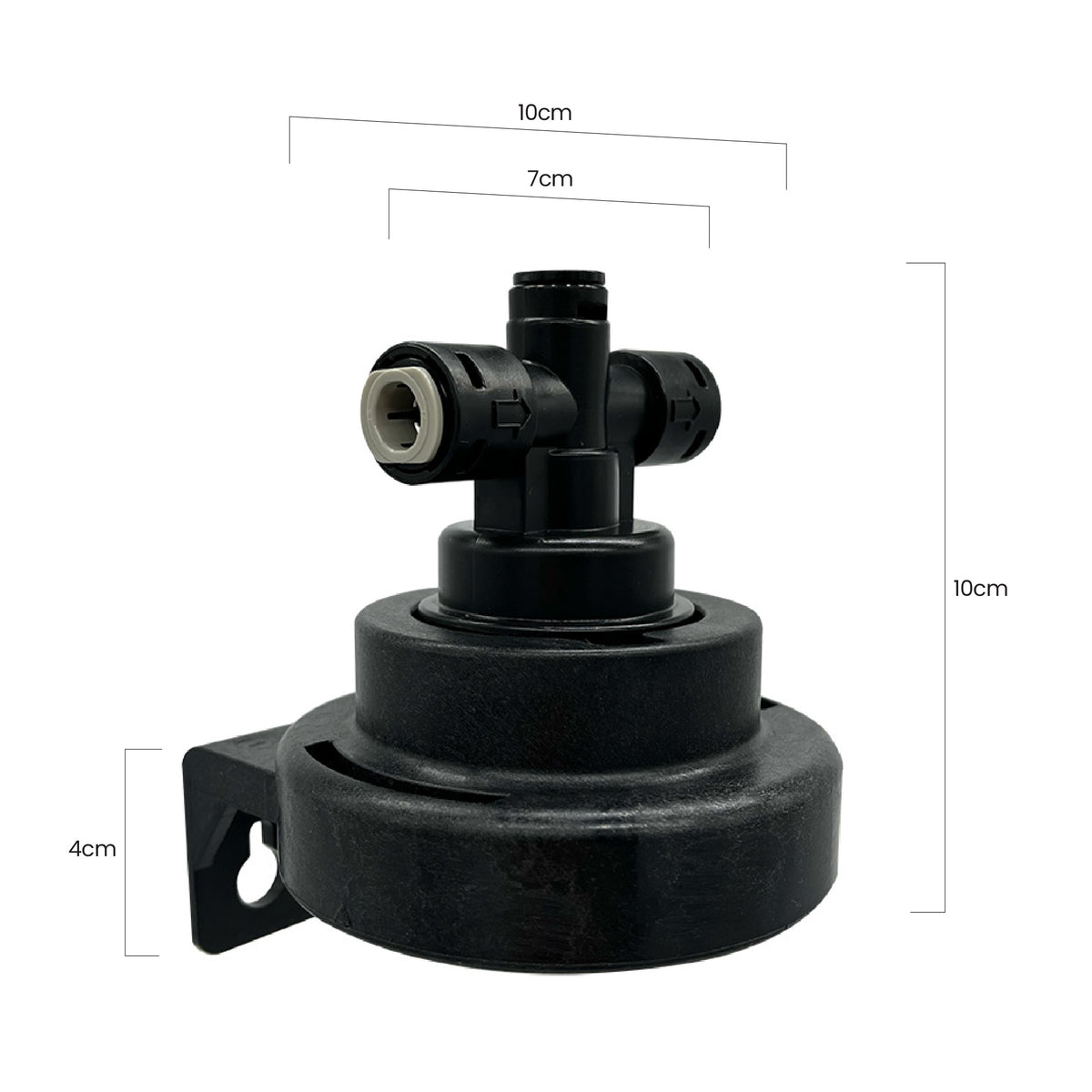

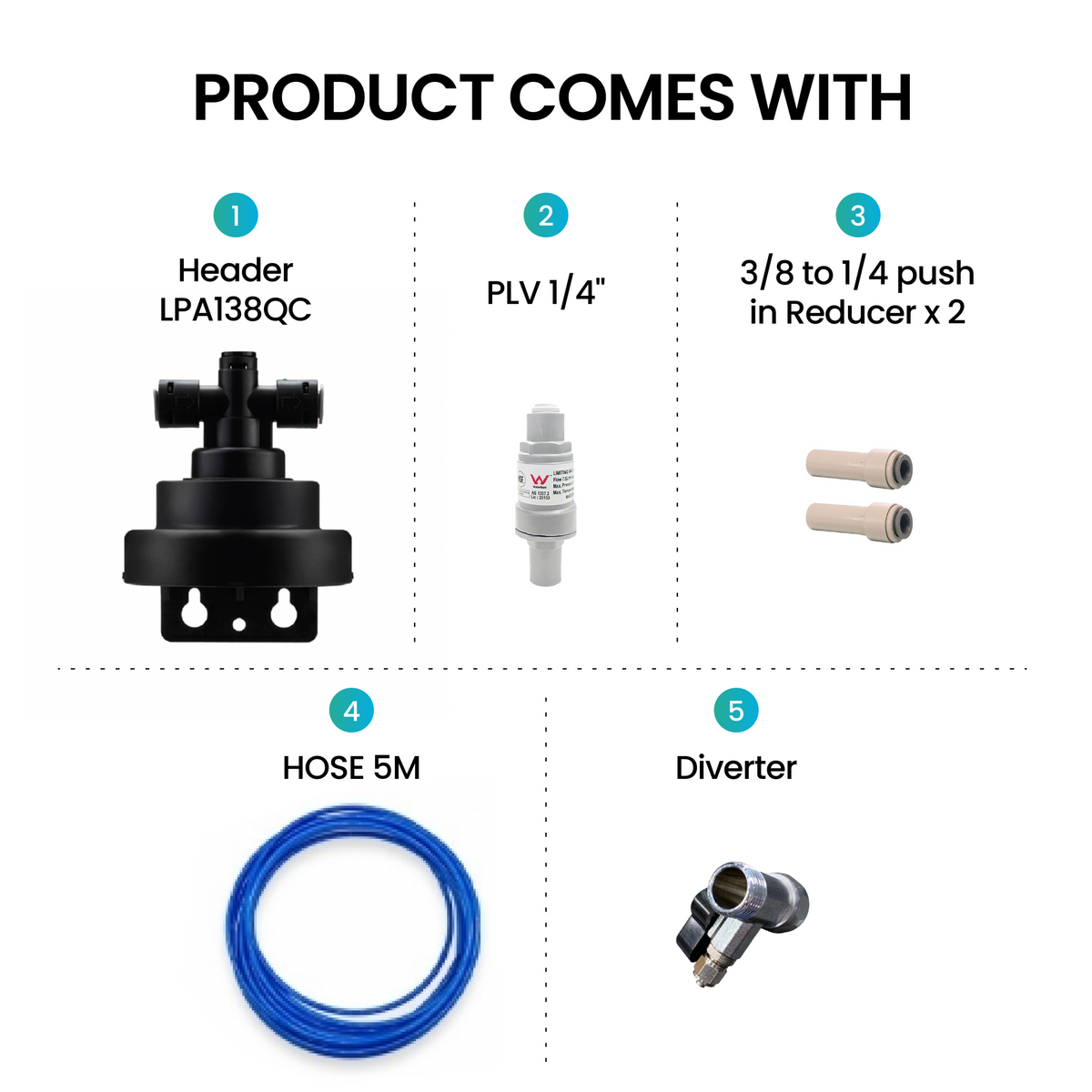

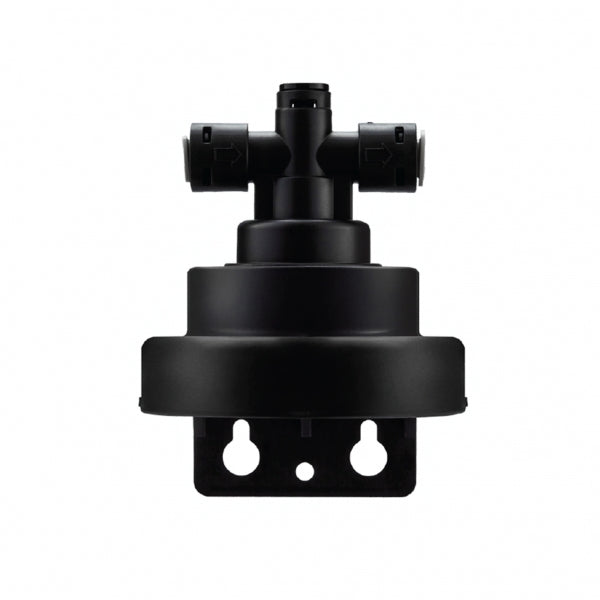

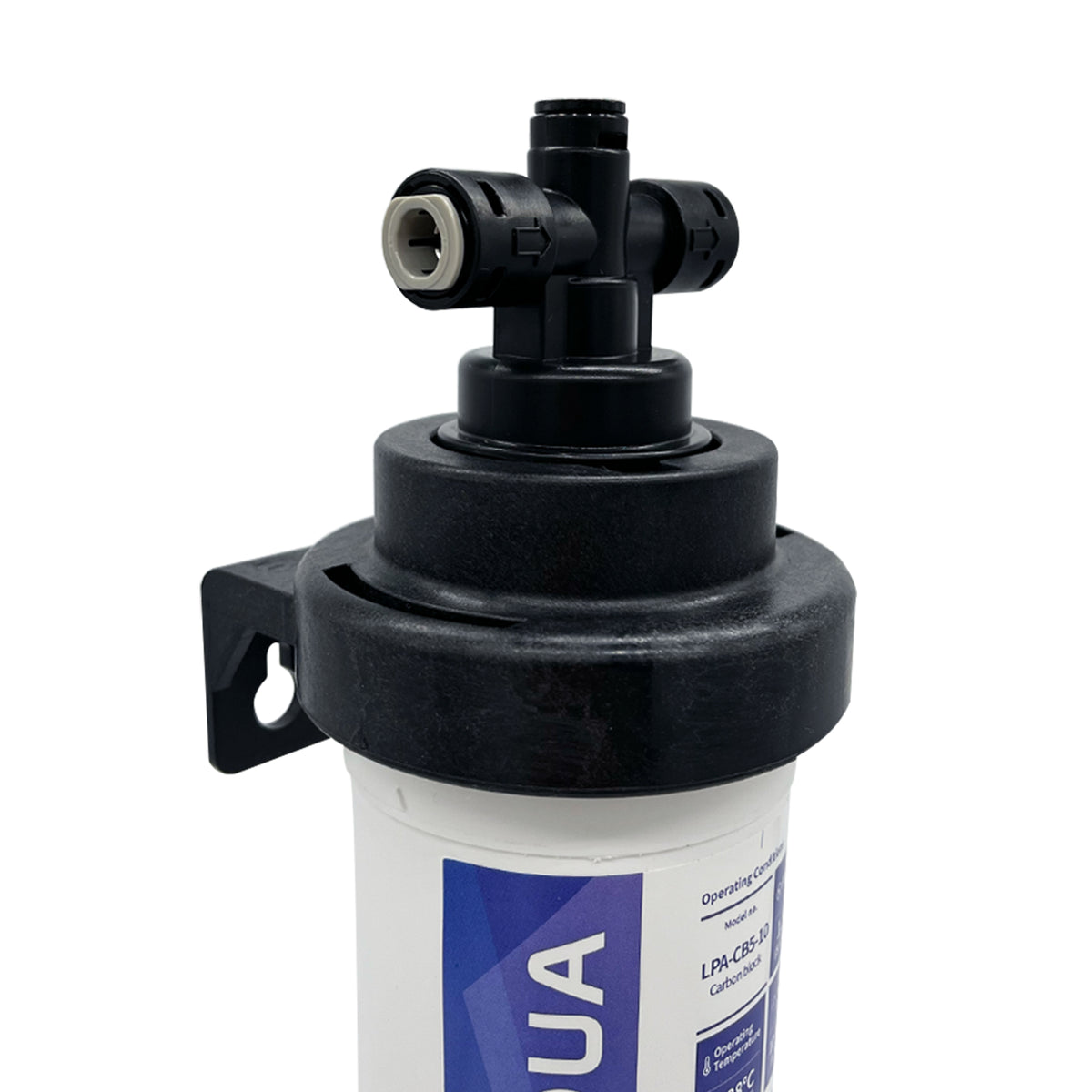

SINGLE HEADER

• Model : LPA138QC
• Dimension : 95.2x126.0x109.8(WxHxD)
• MOQ : 12pcs/box
• Features mounting bracket and 3/8” fittings
• Quick-Change Type Head(Manifold)
• Includes-built in water shut-off valve (Auto shut-off valve)
