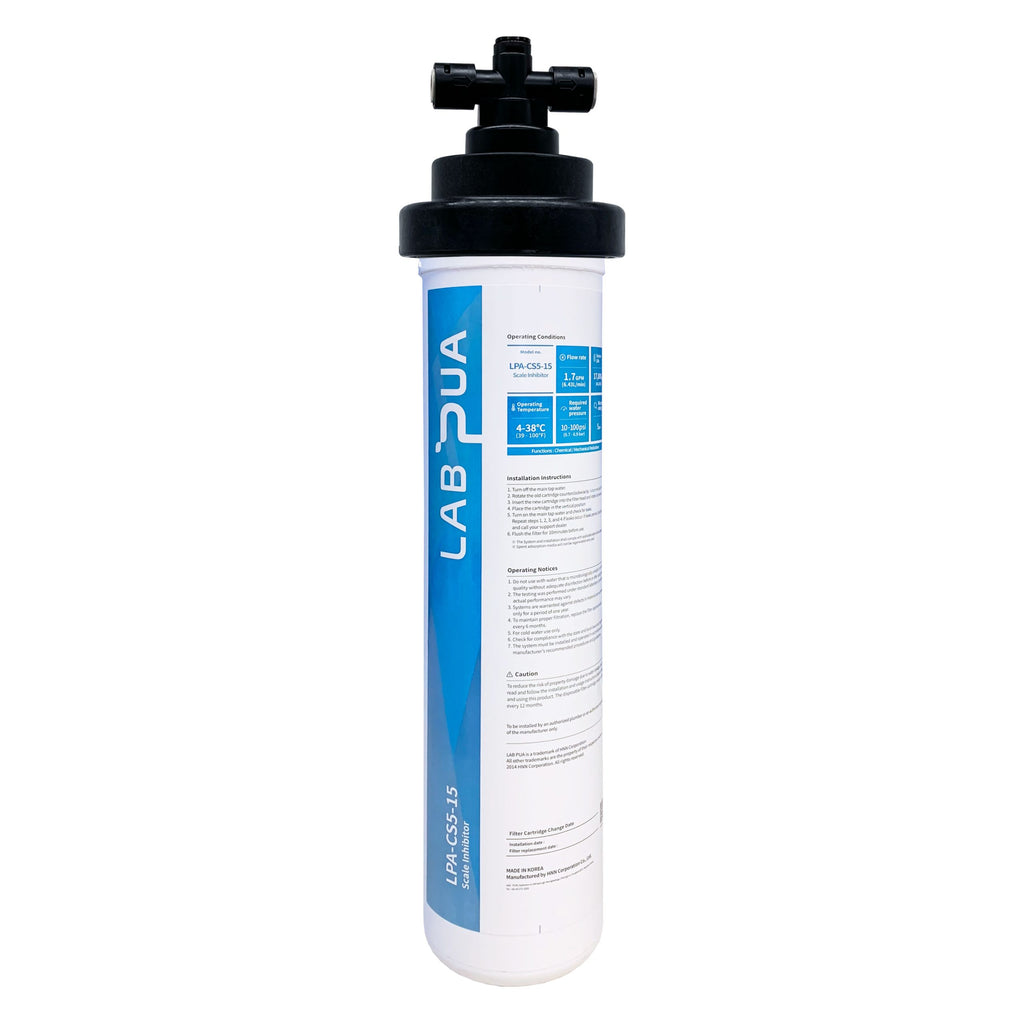

LAB PUA LPA-CS5-15 HIFLOW- FAST FLOW FILTER SYSTEM - INLINE

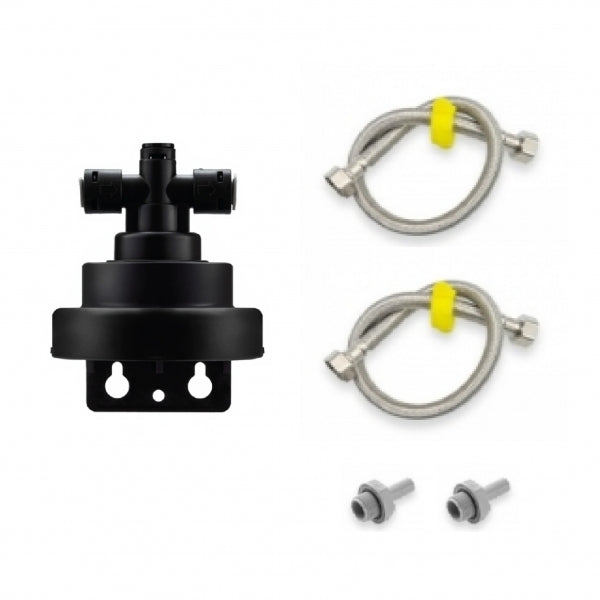

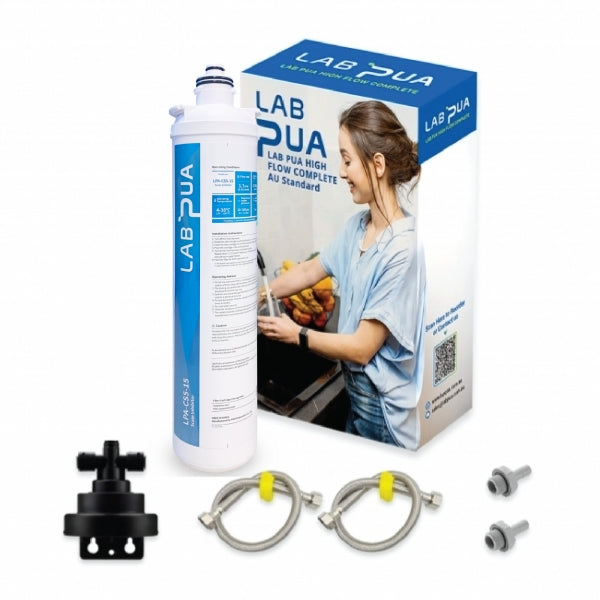

KIT INCLUDES

1X FILTER

1 X HEADER  WITH 15MM  BSP OUTPUT FOR 1/2" HOSE CONNECTION

1 X  BRACKET WITH EXTRA BRACKET FOR HORIZONTAL INSTALLATION CUSTOMER

1 X  3/8 " TO 1/2"  CONNECTION

1 X  15MM  BRAIDED  HOSE

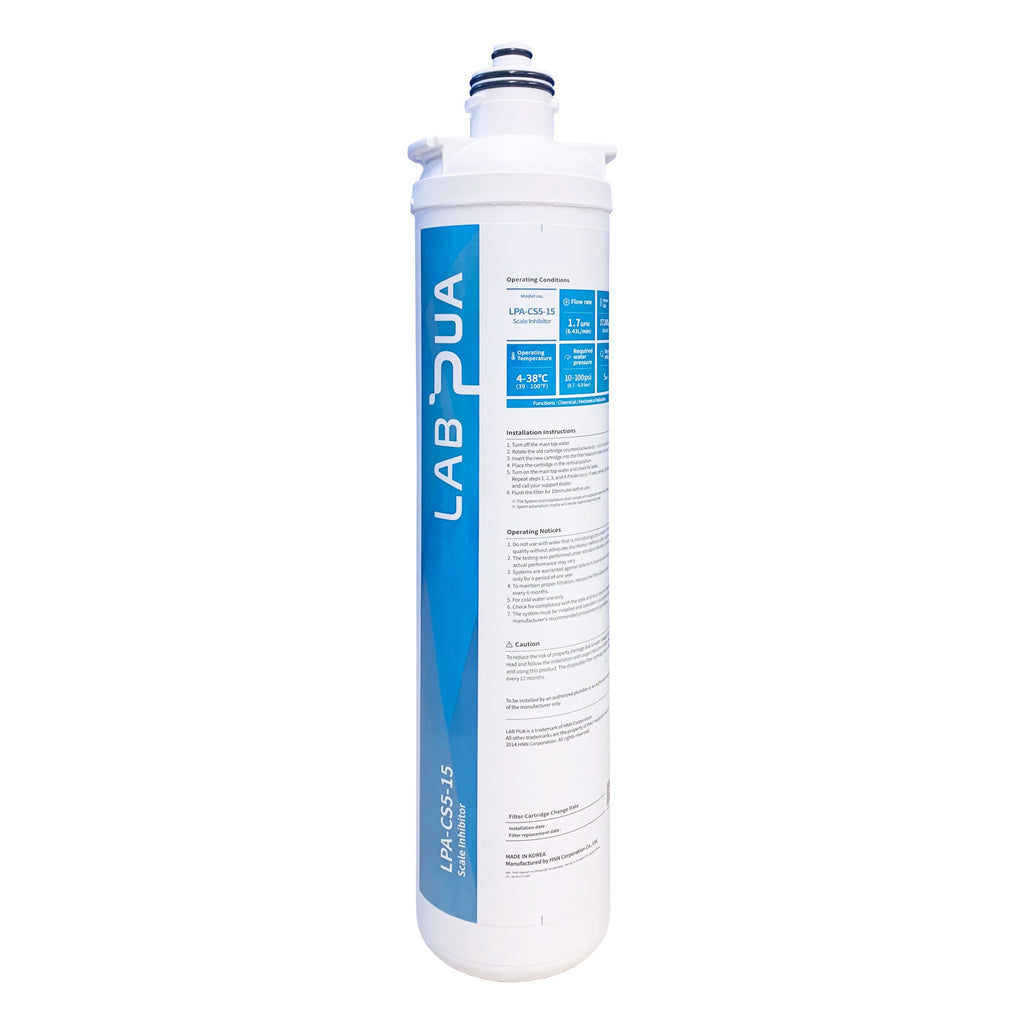

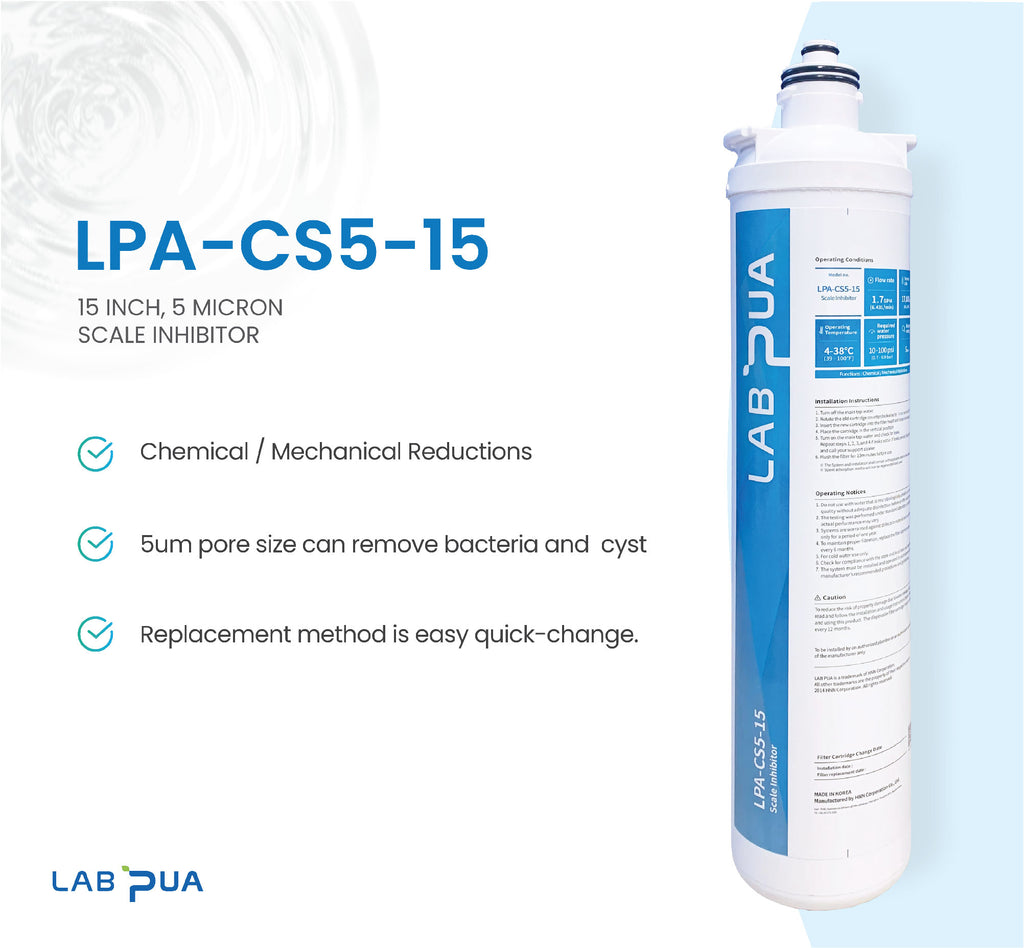

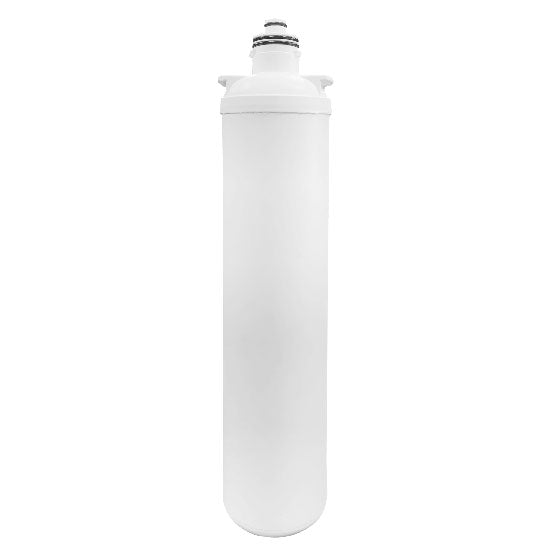

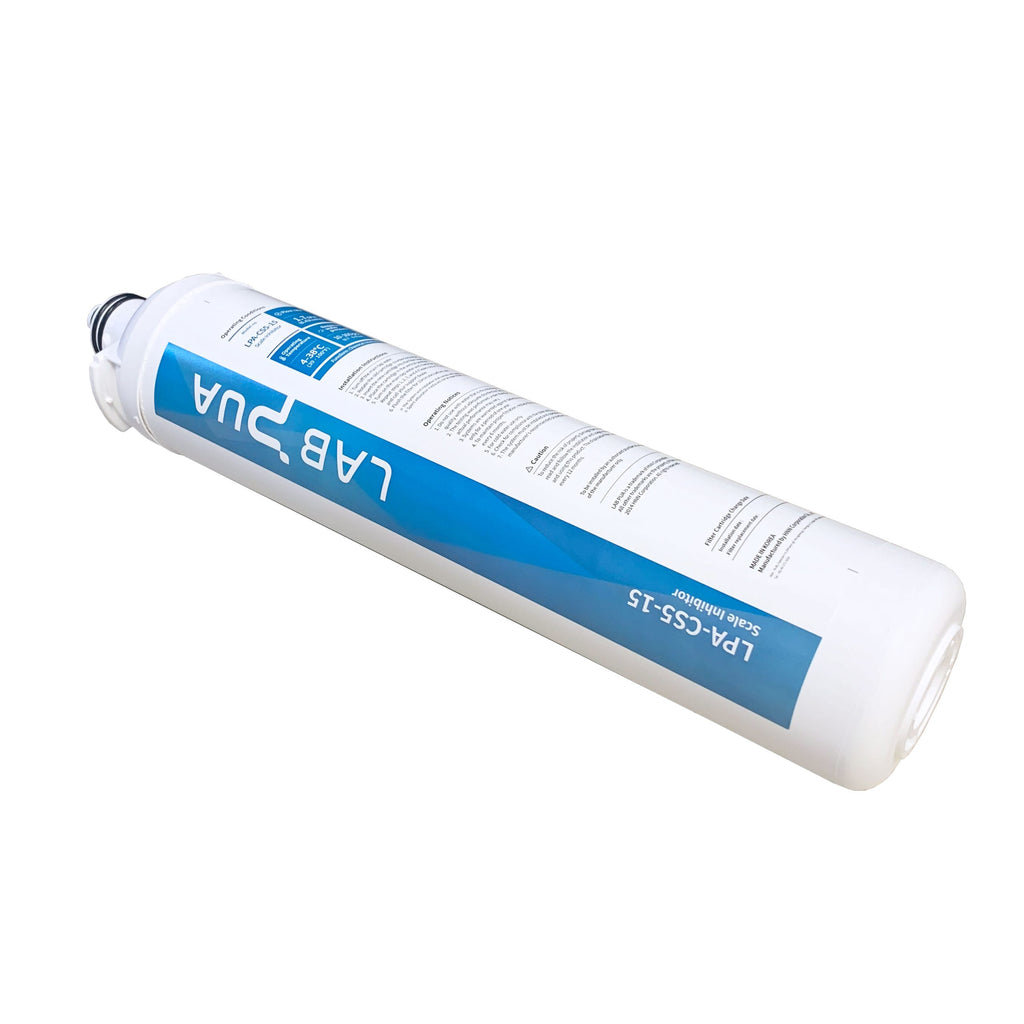

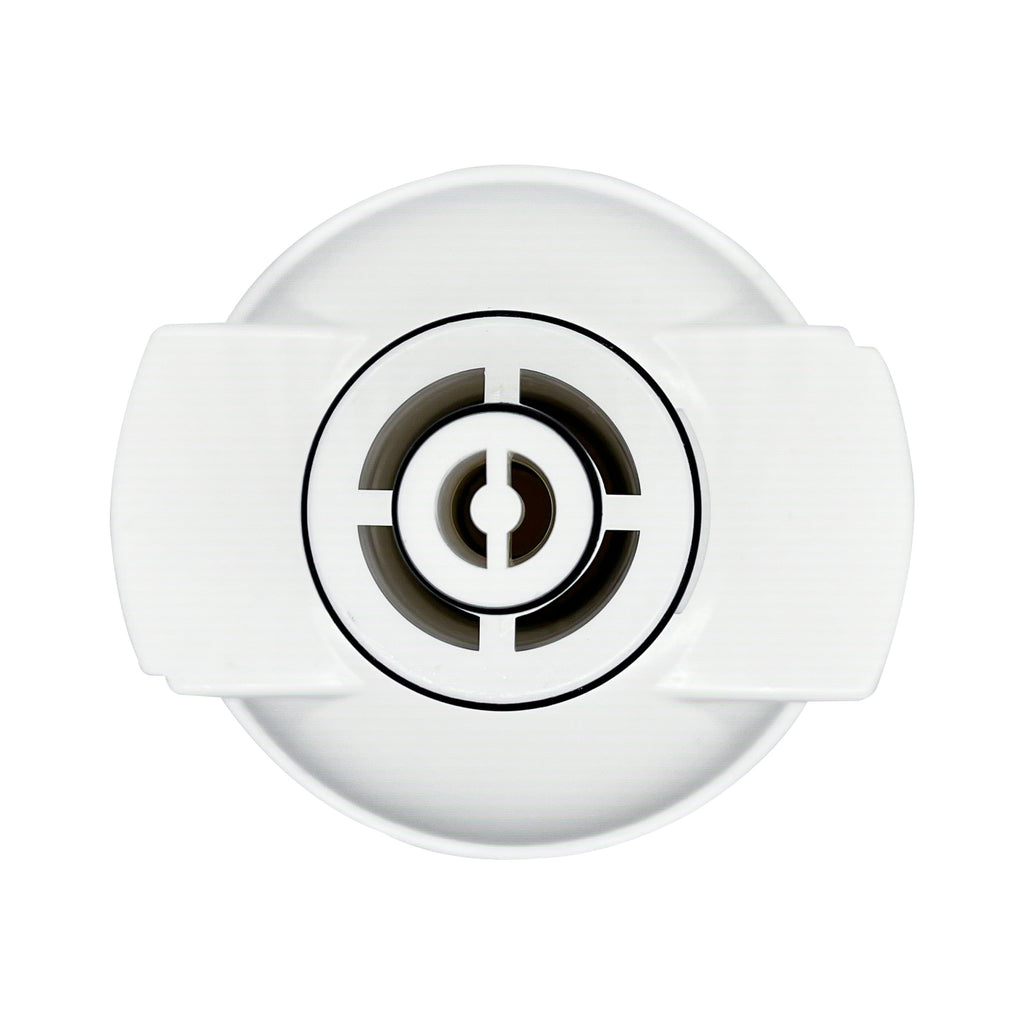

LPA-CS5-15 – Water Filter Cartridge

Specifications

• Service Flow Rate: 1.7 GPM (6.43 L/min)
• Rated Capacity: 17,000 Gallons (64,345 L)
• Operating Temperature: 4–38°C (39–100°F)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet/Outlet Connection: 3/8″
• Electrical Connection: None required
• Dimensions:
  • Overall: 3.7″ × 16.9″
  • Cartridge: Ø3.3″ × 15.7″
• Weight: 0.8 kg

Claims

Effectively reduces:

• Chlorine
• Unpleasant taste and odor
• Particulates
• Scale (via phosphate scale inhibitor)

Features & Benefits

• Phosphate treatment helps prevent scale buildup in boilers and heaters
• 5-micron CTO block filter for effective particulate removal
• Extrusion carbon technology ensures consistent and reliable performance
• Pre-Shield Technology helps prevent early clogging and extends cartridge lifespan
• Quick-change design for easy and hassle-free replacement

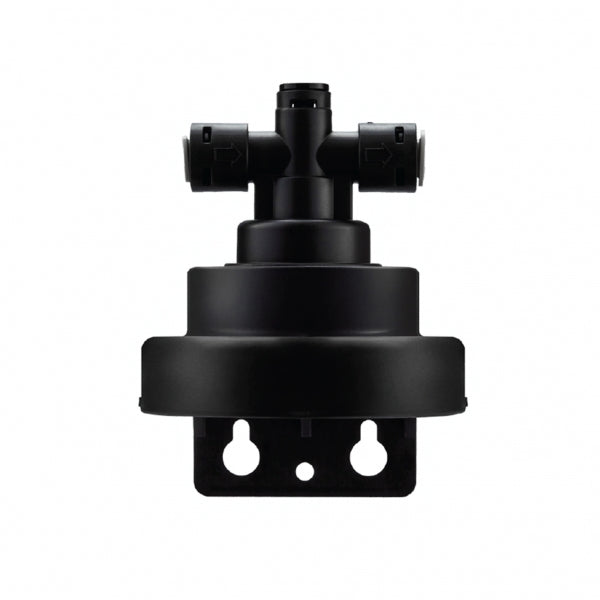

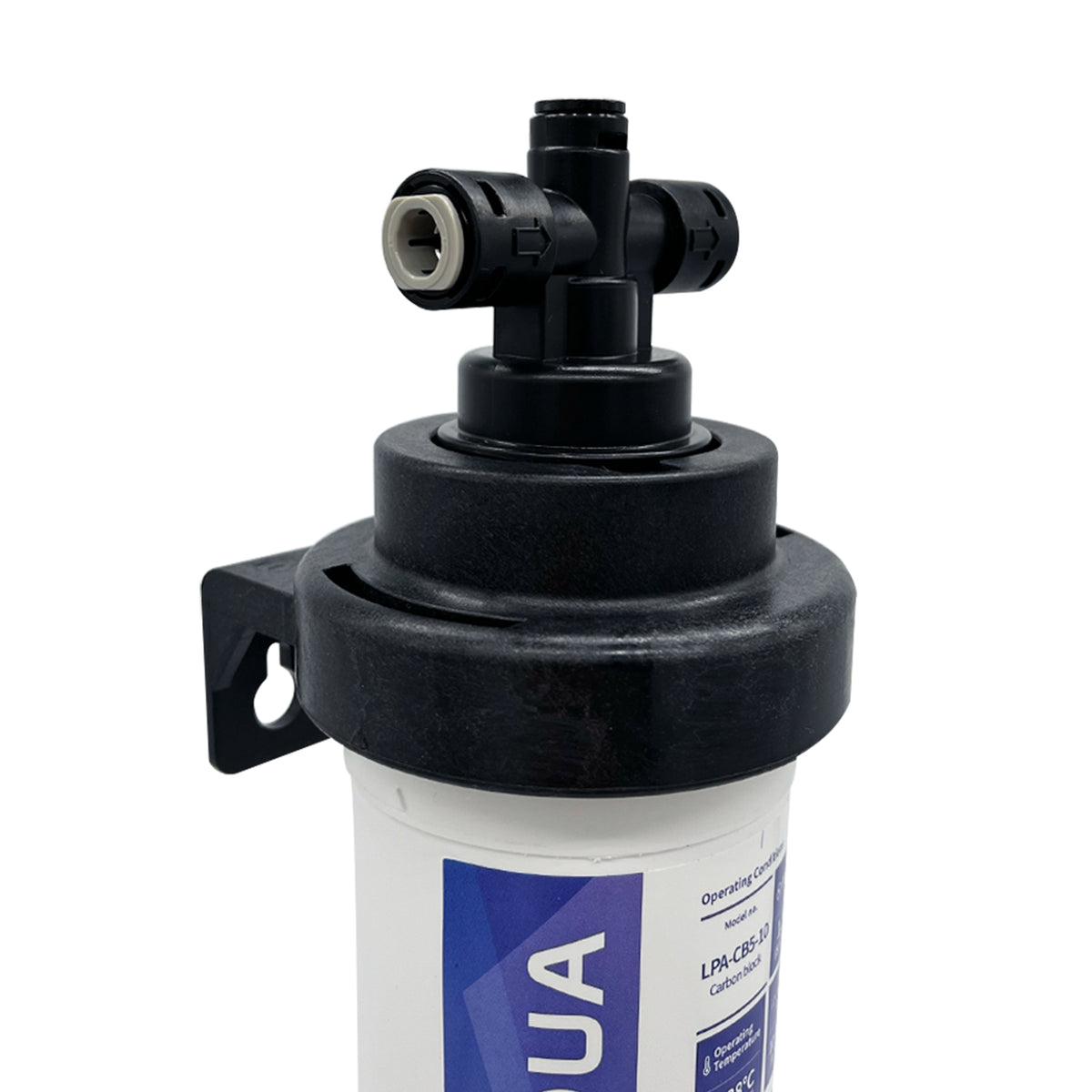

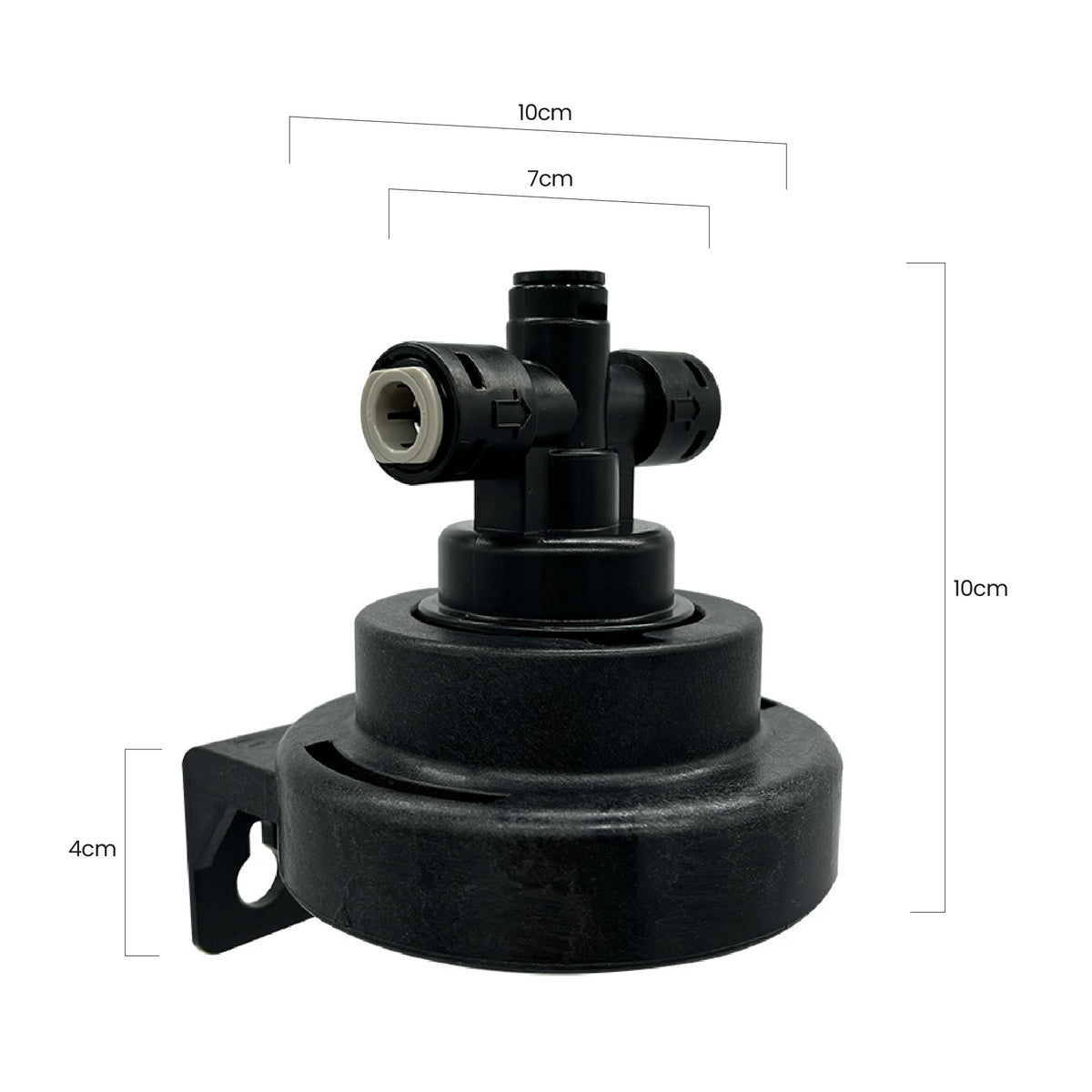

SINGLE HEADER

• Model : LPA138QC
• Dimension : 95.2x126.0x109.8(WxHxD)
• MOQ : 12pcs/box
• Features mounting bracket and 3/8” fittings
• Quick-Change Type Head(Manifold)
• Includes-built in water shut-off valve (Auto shut-off valve)
