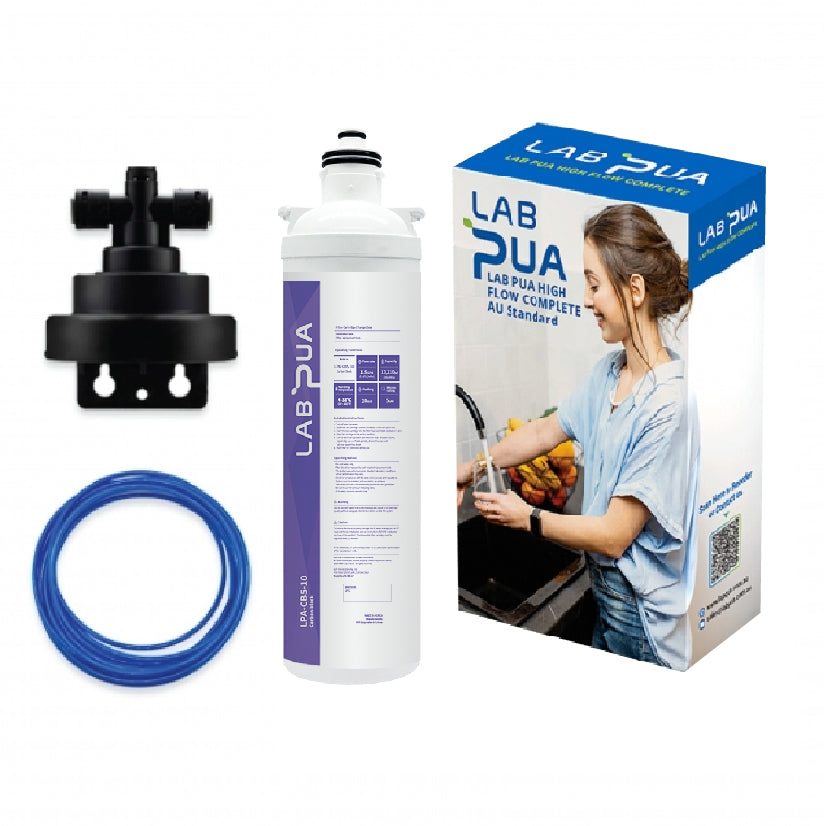

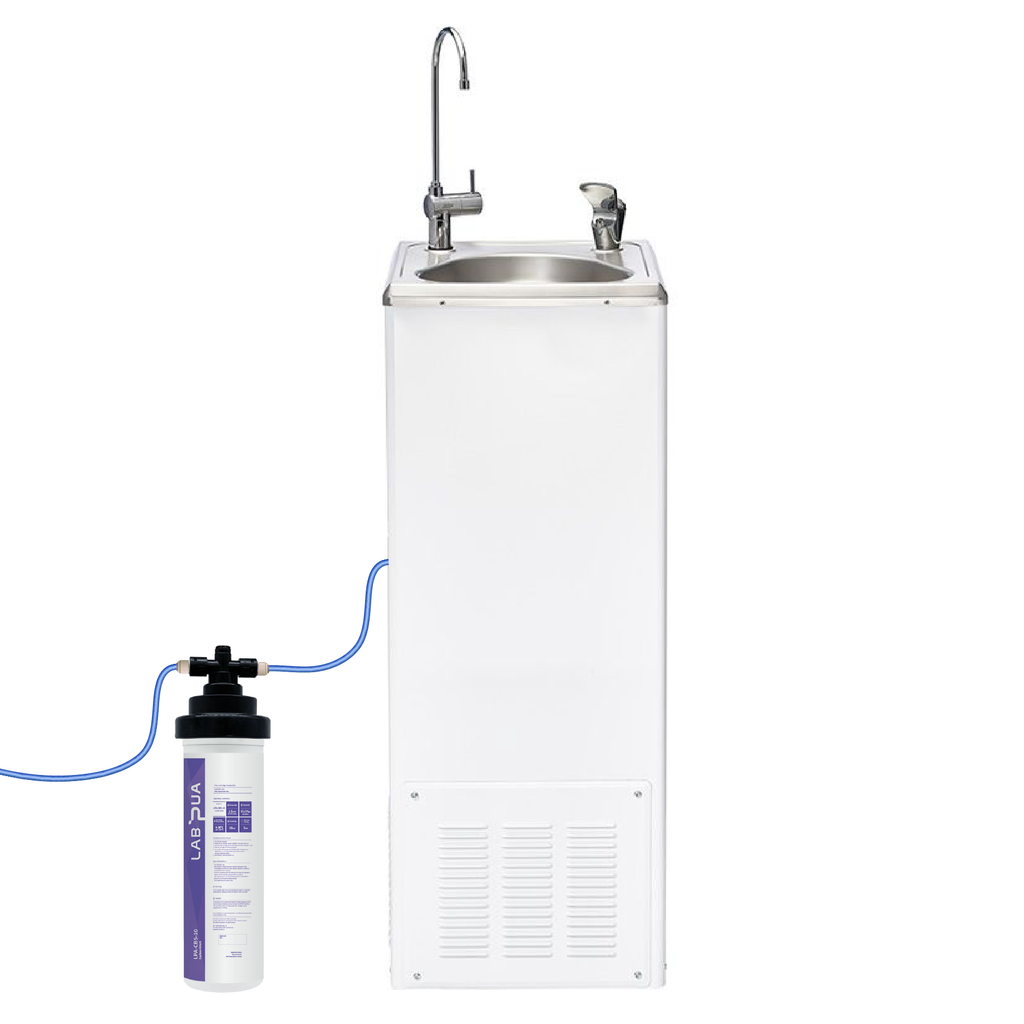

Economaster 60 BCF 19 with Lab Pua LPA-CB5-10 (5um Carbon Block, 10″L)

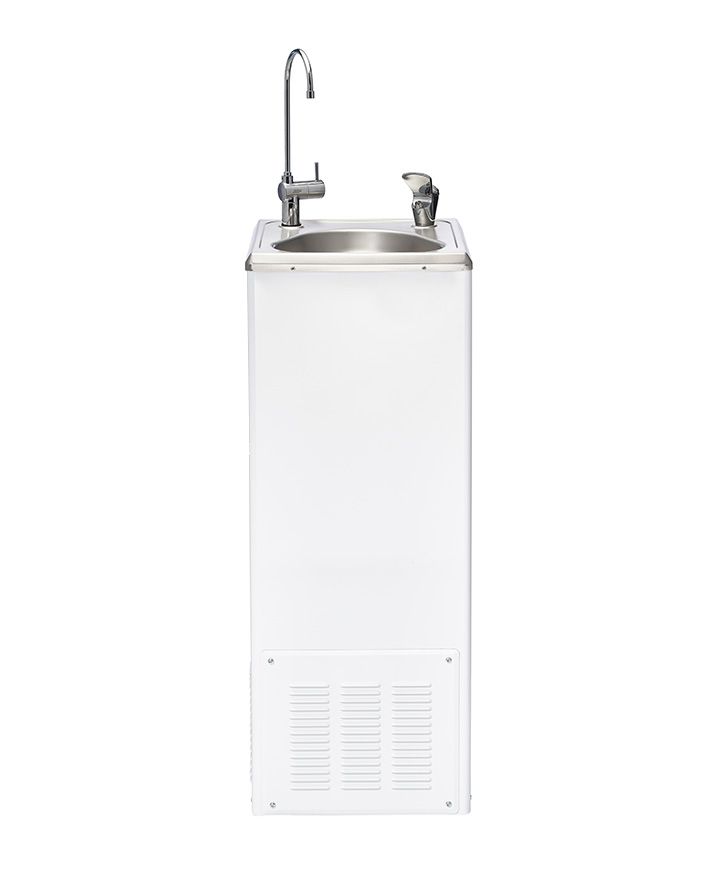

Zip Economaster 60 BCF 19

Product Approvals:
WaterMark, CE, ARC certified

Warranty:
1 year

Dimensions:
Height: 915 mm
Width: 354 mm
Depth: 359 mm

Plumbing:
Water connection: 12.7 mm BSP
Operating water pressure: 150–700 kPa

Electrical:
Power supply:

• 220–240V, 50Hz
• 220V, 60Hz

Tap Design:
Equipped with both a bubbler tap and a carafe tap

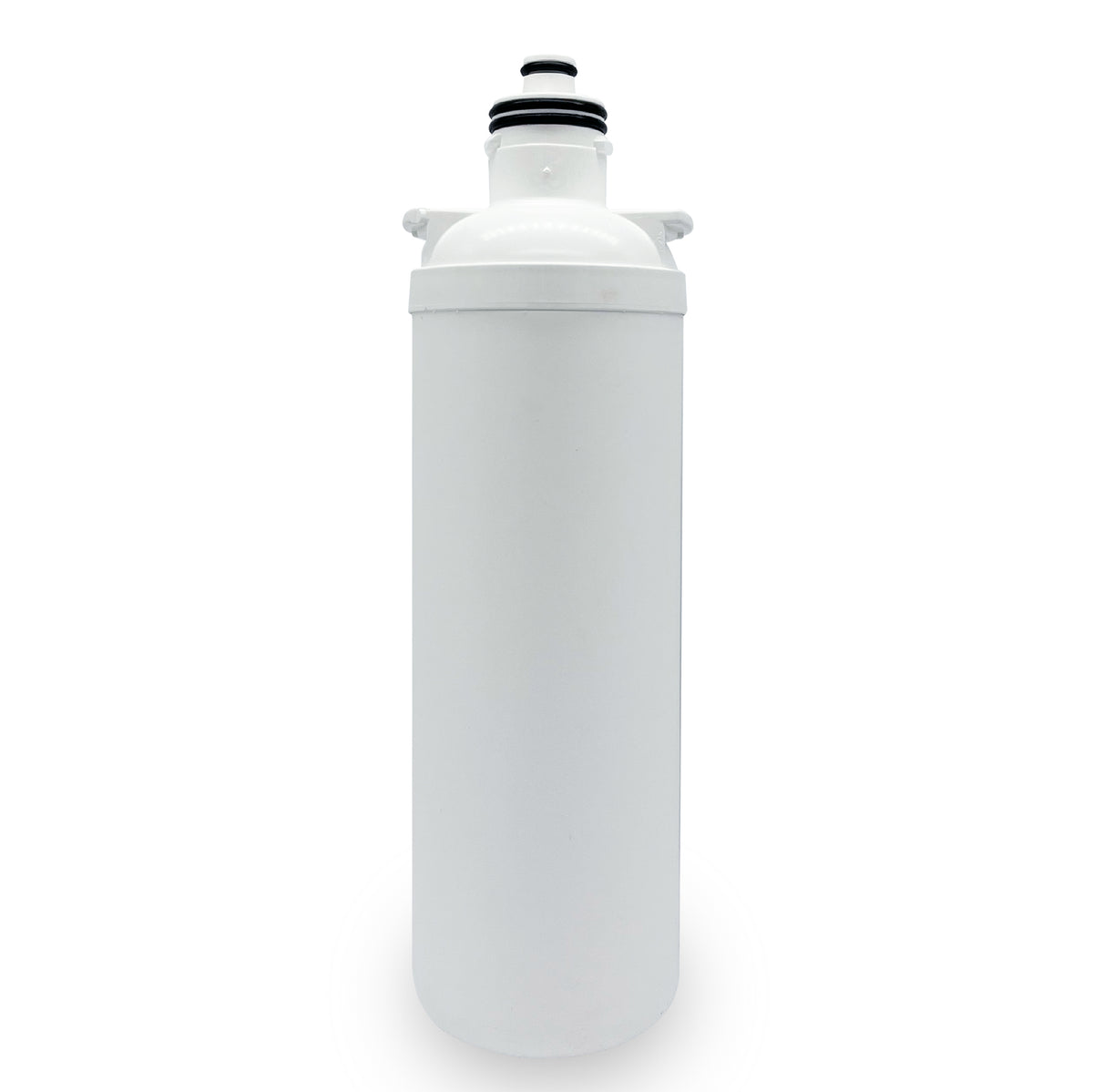

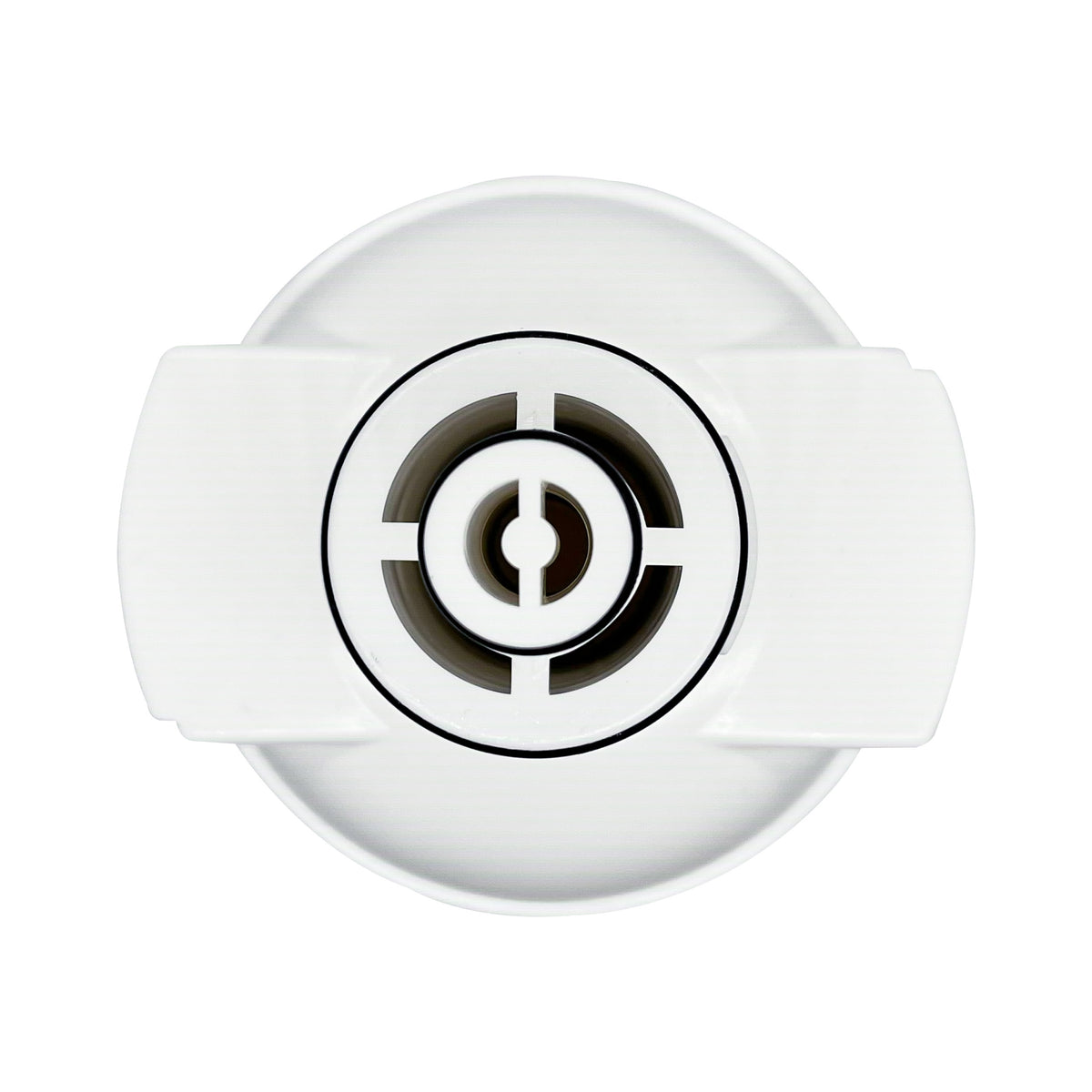

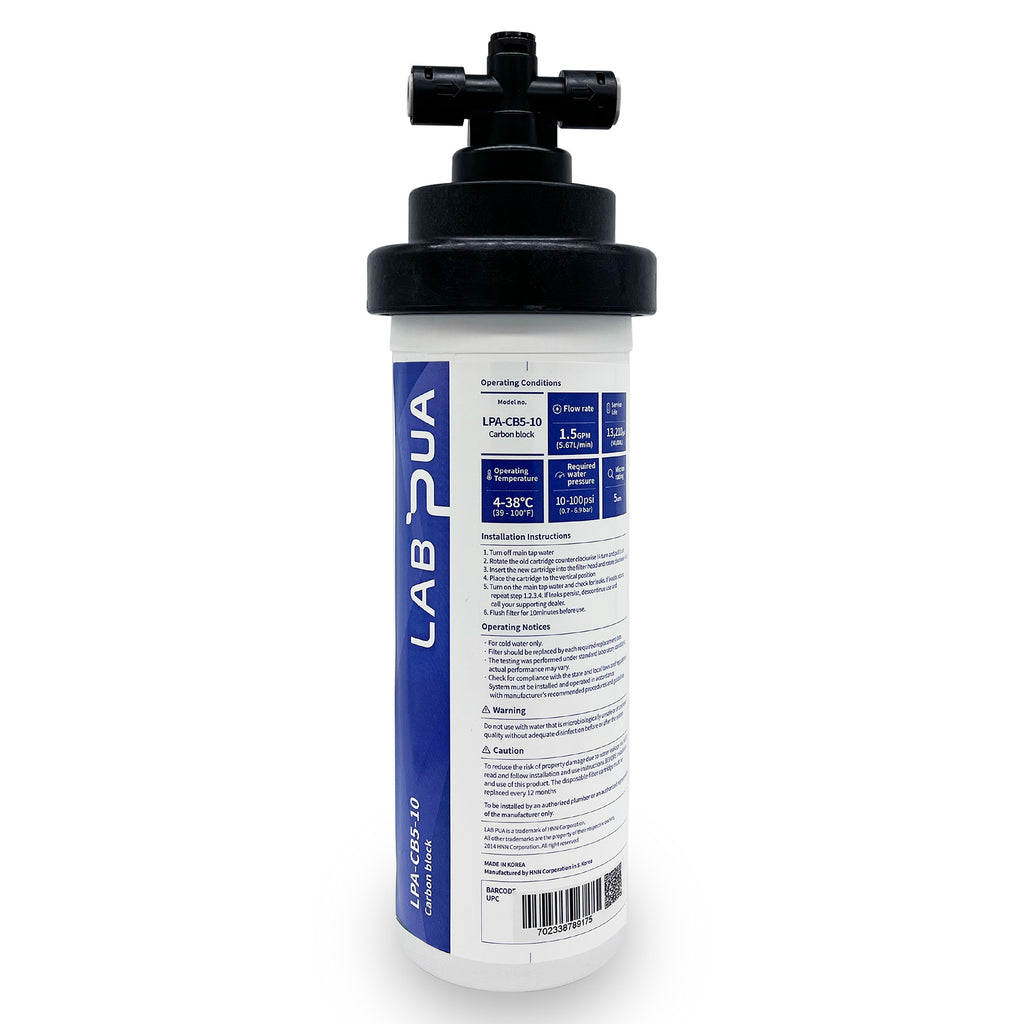

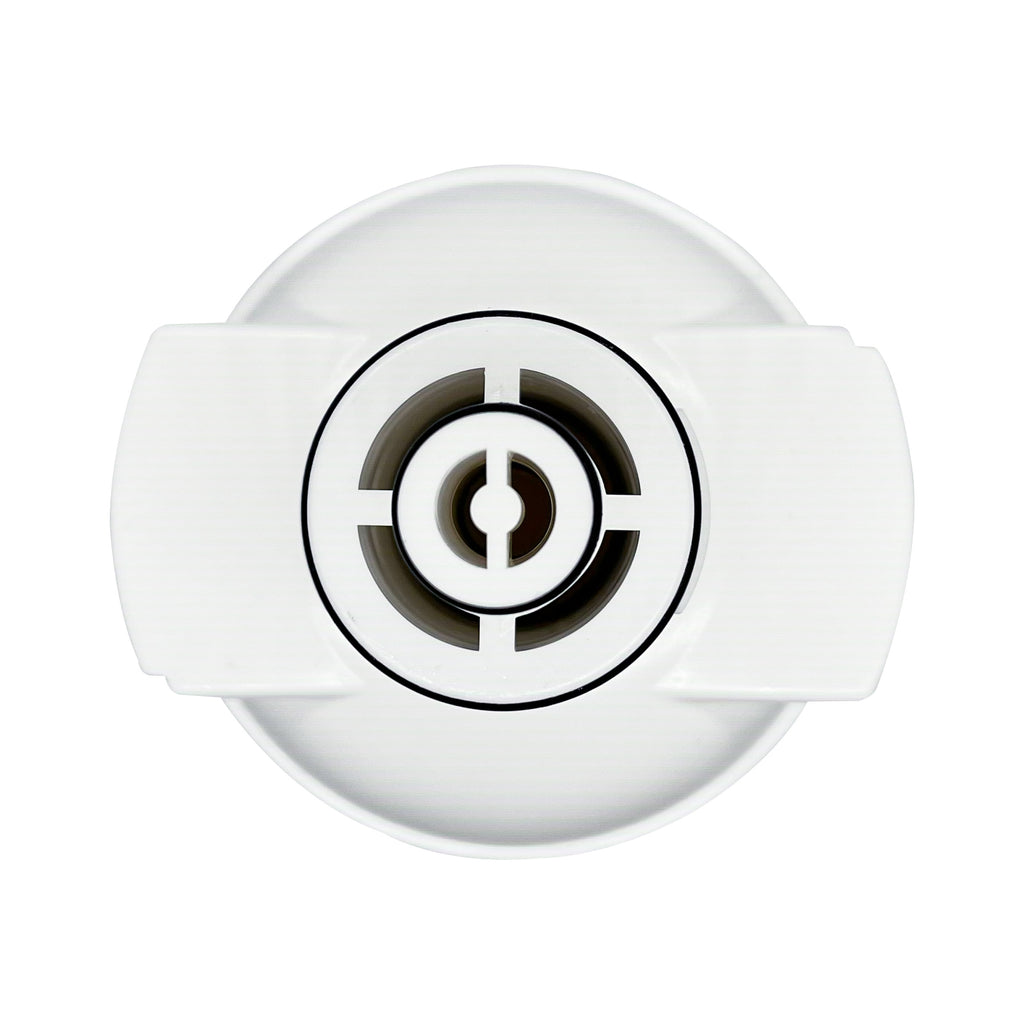

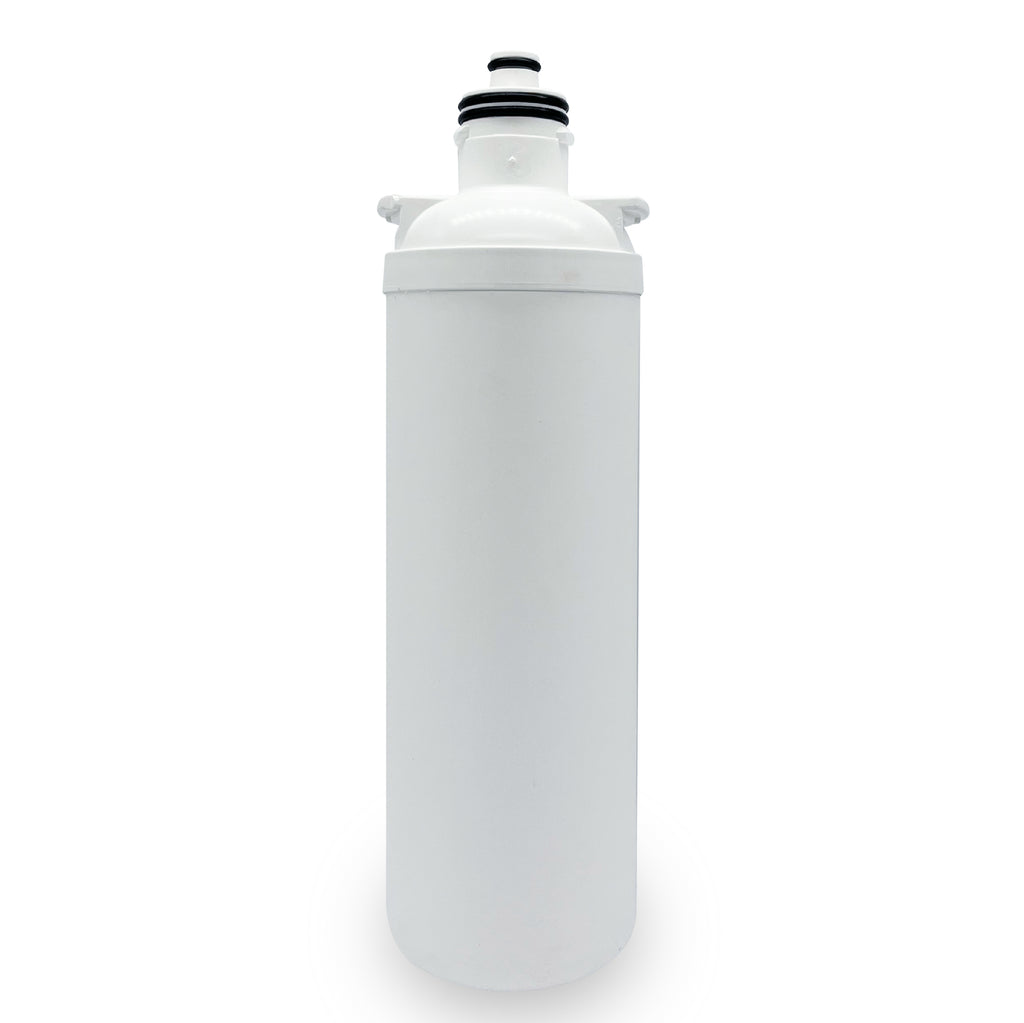

LPA CB5 10

SPECIFICATIONS

• Service Flow Rate: 1.5 GPM (5.67 L/min)
• Rated Capacity: 13,210 Gallons (50,000 L)
• Operation Temperature: 4–38℃ (39–100℉)
• Pressure Requirements: 10–100 psi (0.7–6.9 bar)
• Inlet / Outlet Connection: 3/8"
• Electrical Connection: None required

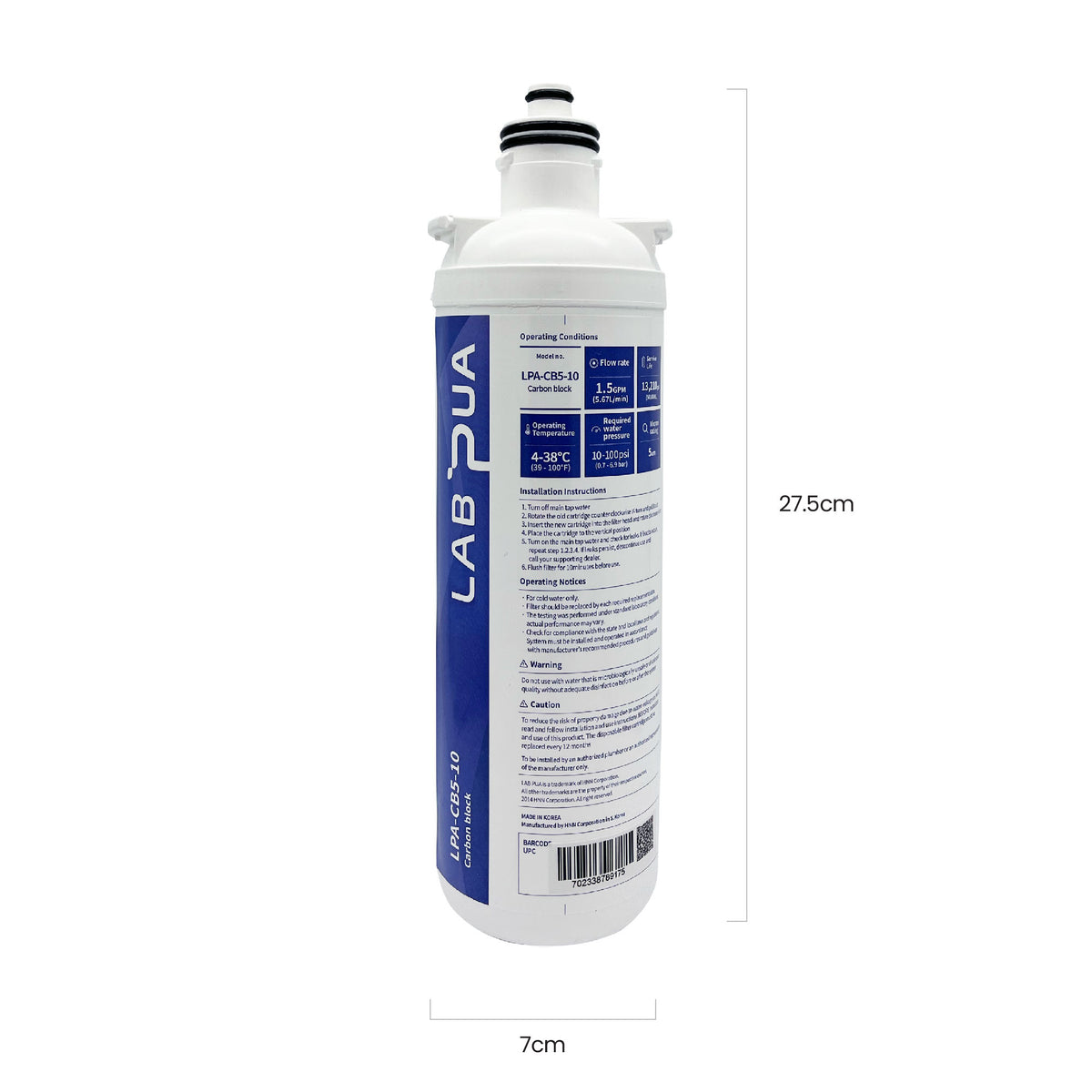

• Dimension
  • Overall: 3.7" × 12.5"
  • Cartridge: Ø3.3" × 10.7"
• Weight: 1.0 kg
• Claim: Chlorine, Taste and Odor, Particulate Class 3 (5–15 μm)

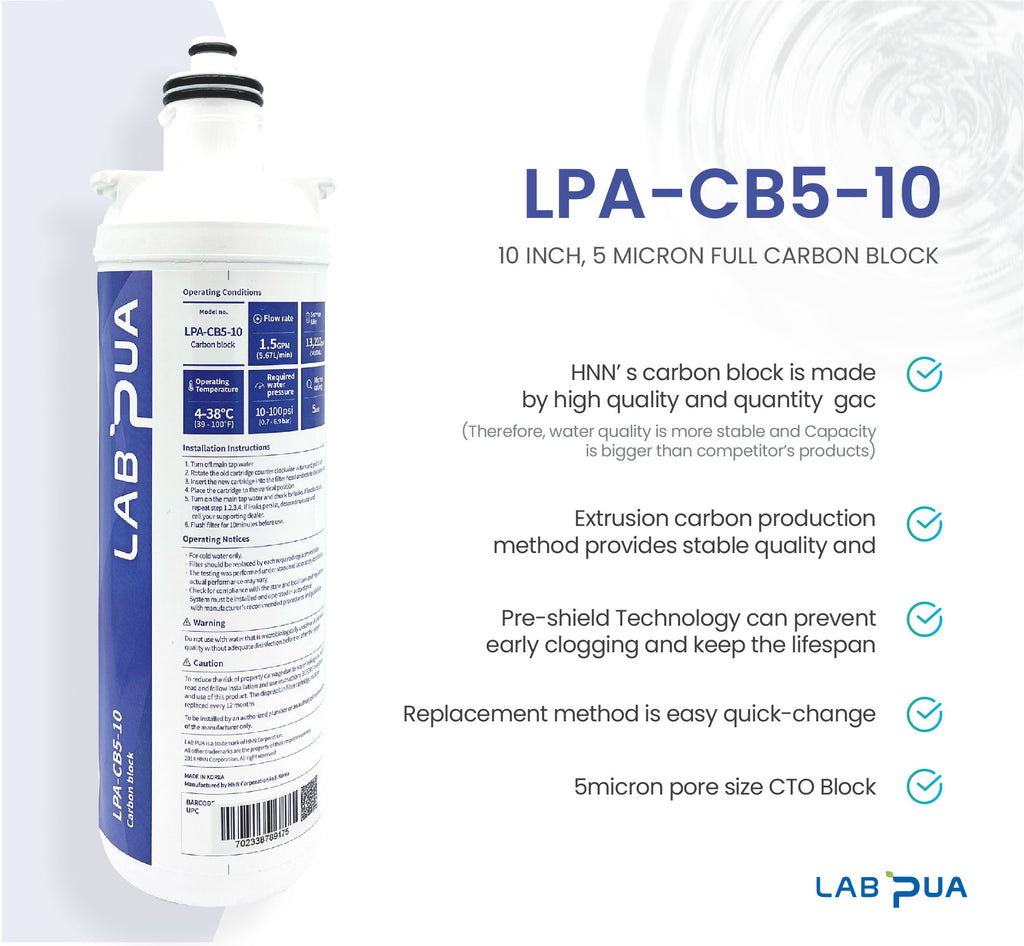

FEATURES · BENEFITS

• HNN’ s carbon block is made by high quality and quantity gac.

(Therefore, water quality is more stable and Capacity is bigger than competitor’s products)

• 5micron pore size CTO Block

• Extrusion carbon production method provides stable quality and

• Pre-shield Technology can prevent early clogging and keep the lifespan.

• Replacement method is easy quick-change.

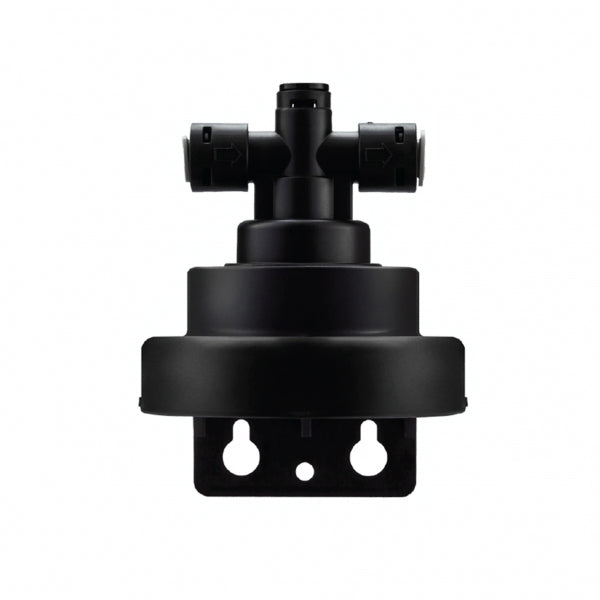

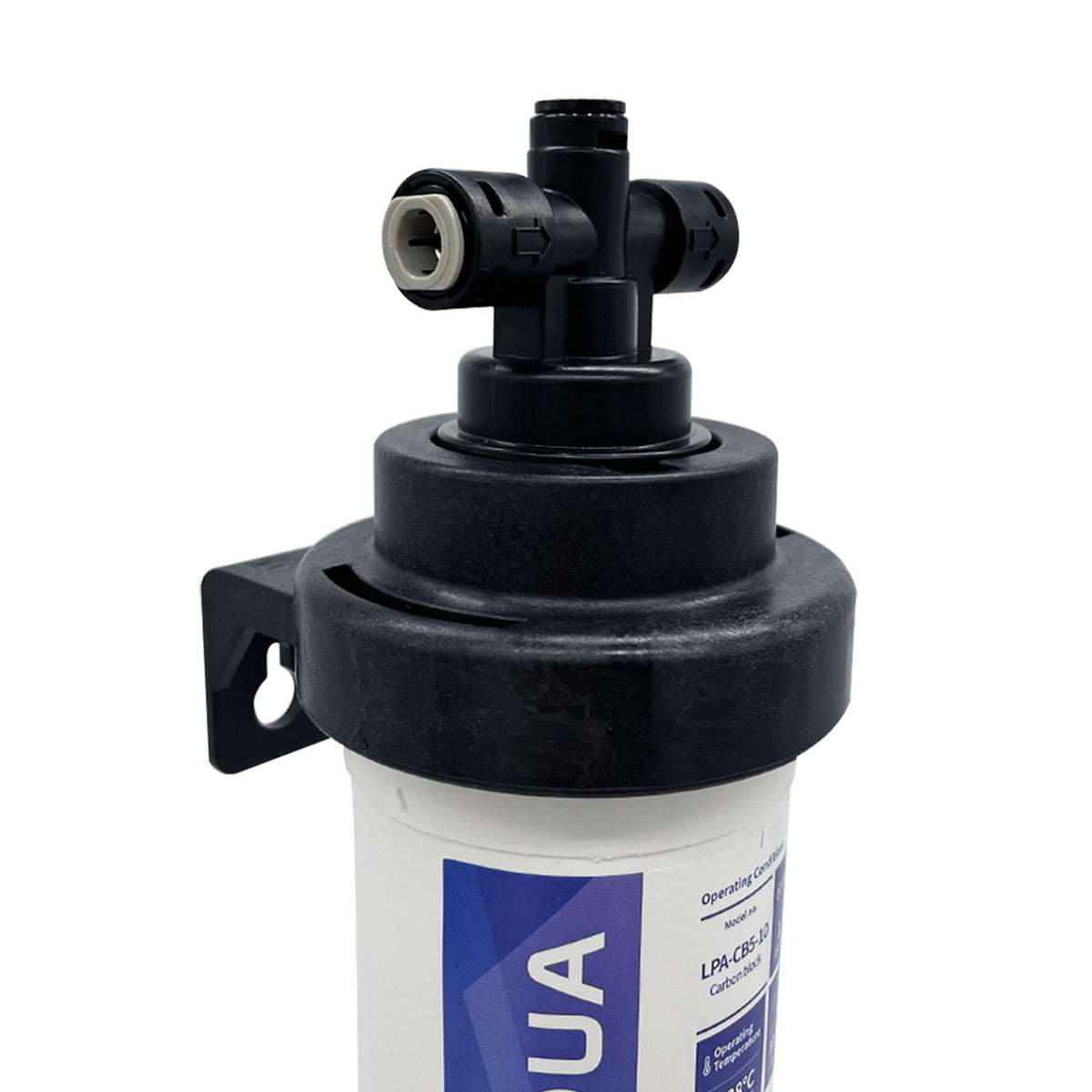

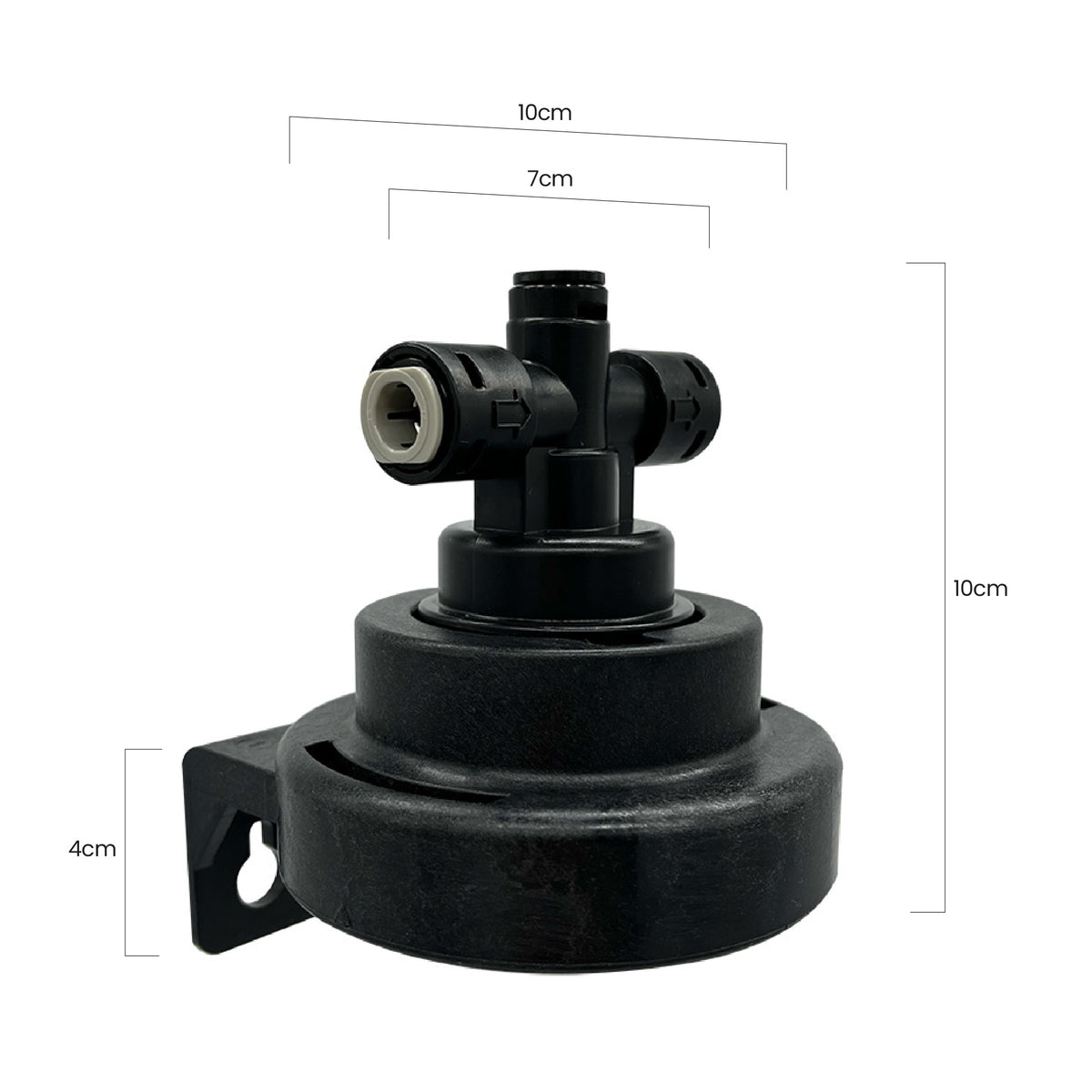

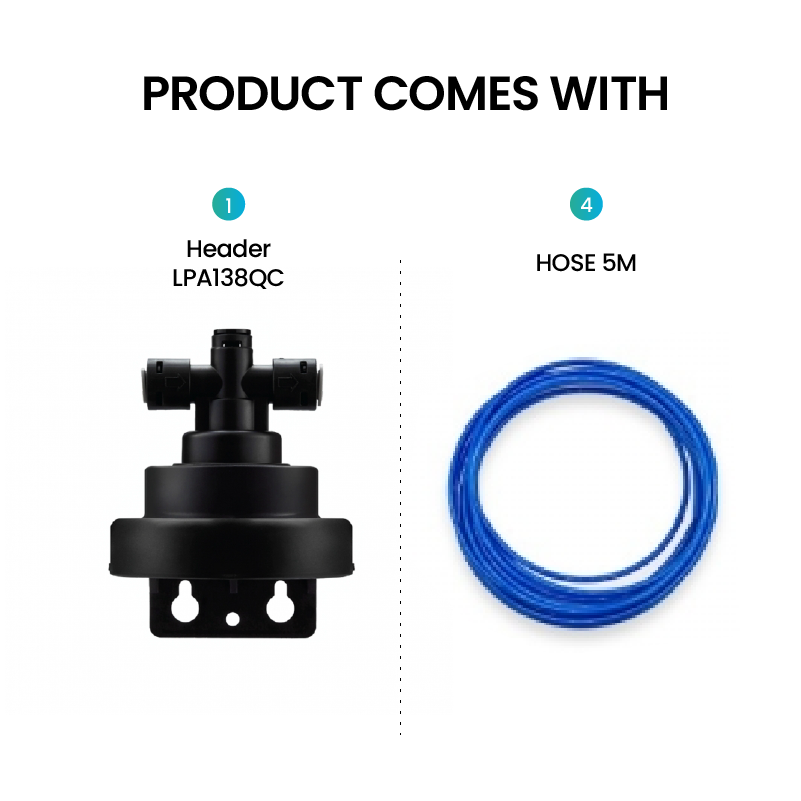

SINGLE HEADER

• Model : LPA138QC
• Dimension : 95.2x126.0x109.8(WxHxD)
• MOQ : 12pcs/box
• Features mounting bracket and 3/8” fittings
• Quick-Change Type Head(Manifold)
• Includes-built in water shut-off valve (Auto shut-off valve)
