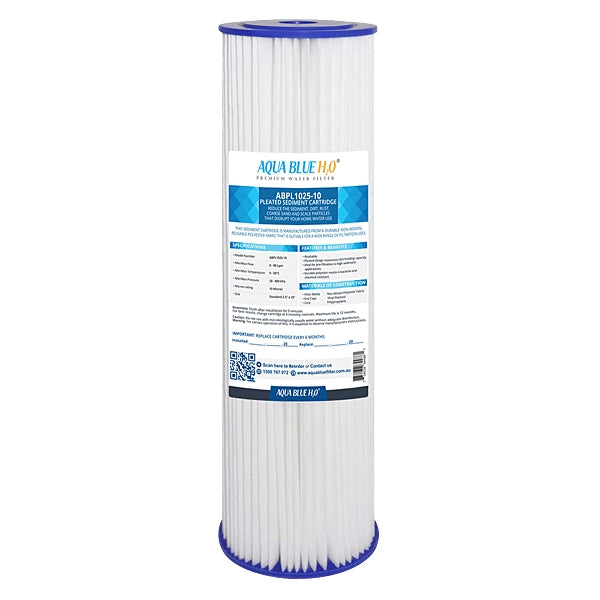

10" Pleated Sediment Cartridge 5 Micron Water Filter, ABPL1025 5M

10" x 2.5" Washable Pleated Sediment Filter

Pleated sediment filter cartridges are constructed from pleated polypropylene, this technique means there is no center core to restrict filter performance.
These filters are a terrific opportunity to purchase extremely high quality filters at a VERY low price. They are best suited for tank water, rivers, creeks or streams. Anywhere where there is a heavy level of debris or sediment in the water, which may cause standard filters to block prematurely.
Pleated filters have up to 20x's more surface area than a standard polyspun filter!
This gives them a higher surface area to catch more debris and a much longer life duration before replacement is necessary. They can be washed and removed tima and time again, until they begin to perforate, then they will need to be replaced.

5 Micron Pleated Sediment Filter 10″ X 2.5″

- Washable Pleated Sediment Filter
- Pleated design maximizes dirt-holding capacity.
- Ideal for pre-filtration in high sediment applications.
- Durable polyester media is bacteria and chemical resistant.

MATERIALS OF CONSTRUCTION

- Filter Media
- Non-Woven Polyester Fabric
- End Caps
- Vinyl Plastisol
- Core Polypropylene

Specification

- Model Number: ABPL1025
- Operating Flow: 0 - 90 Lpm
- Operating Temperature: 0 - 50°C
- Operating Pressure: 20 - 800 kPa
- Micron Rating: 5 Micron

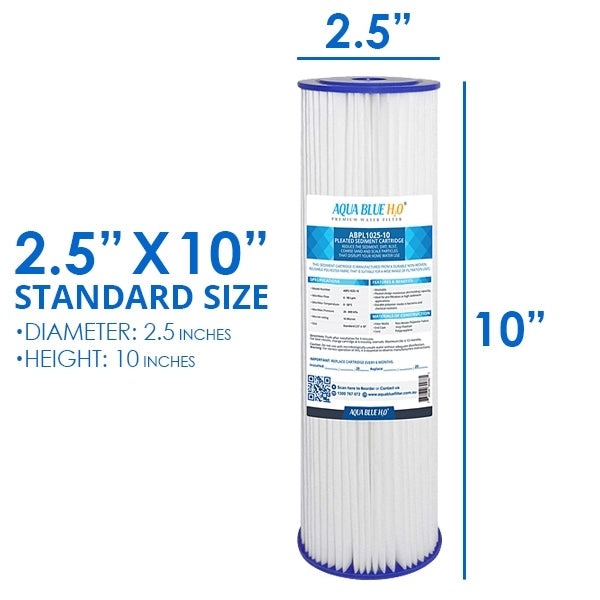

- Size: Standard 2.5” x 10”
