PLV275 3/8″ Green Label 275 KPA Pressure Limiting Valve
$24.00
Skip to product information
Watermark AS1357.2 Lic 23133

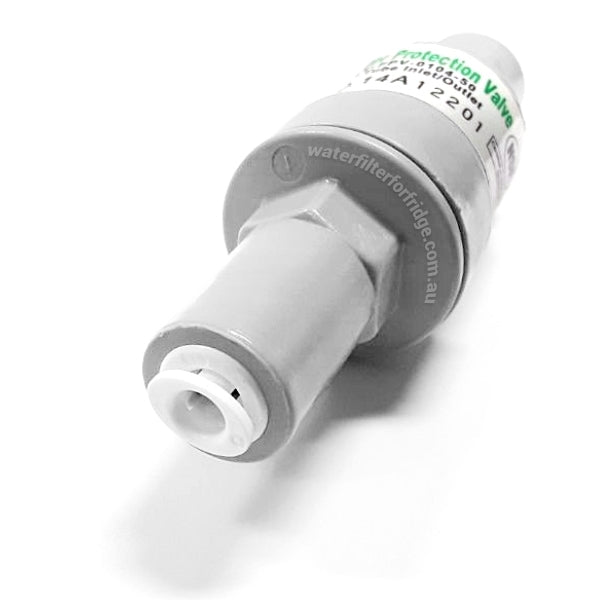

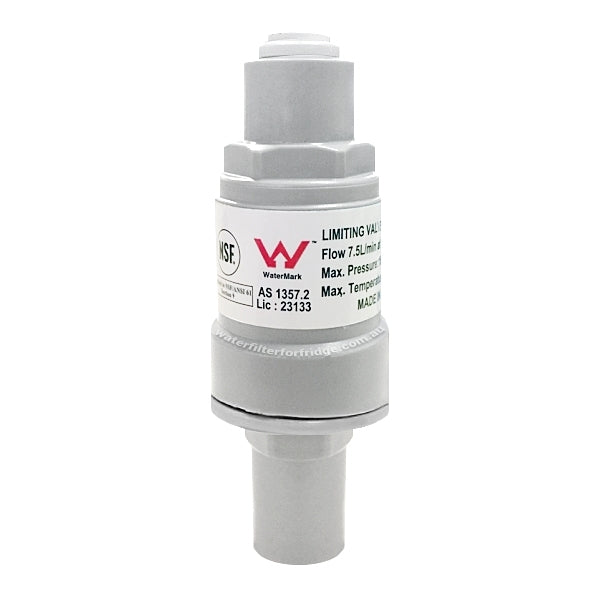

PLV275 3/8″ Green Label 275 KPA Pressure Limiting Valve
$24.00
Watermark AS1357.2 Lic 23133
NSF : Certified to NSF/ANSI 61 Section 9
Pressure Limiting Valve 275kPa (40 PSI) Filter Protection Valve
Product Overview
Pressure Reduction Valve with 3/8" Quick Connect Push Fit In and Out.
Suitable for high pressure systems to protect drink dispensers such as
water filters, ice makers, coffee machines and reverse osmosis machines.
Prevents water hammer and back flow.
Australian/New Zealand Watermark Approved
Highly recommended when installing water filter systems.
- Integral check valve
- Resists water hammer
- Stops backflow
- Pressure limiting valve set at 275 kPa with backflow prevention

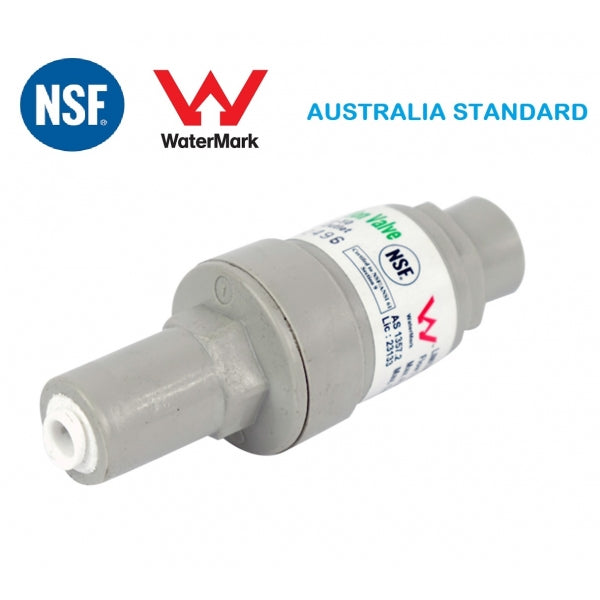

Certifications
- Watermark AS1357.2 Lic 23133
- NSF Certified to NSF/ANSI 61 Section 9
Specifications
| Limiting Pressure | 275 kPa (40 PSI) |
|---|---|
| Flow Rate | 7.5 L/min at 700 kPa (100 PSI) |
| Max Pressure | 1600 kPa (230 PSI) |
| Max Temperature | 4 – 42 °C |
| Connections | 3/8" John Guest type push-fit tubing |

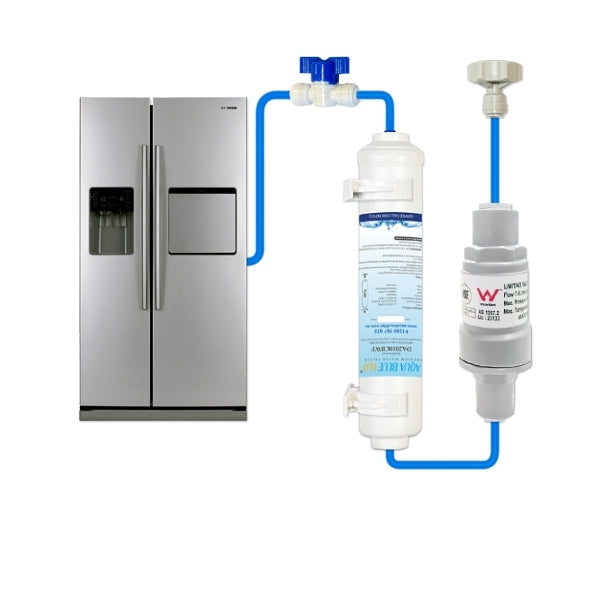

Applications
Ideal for use with reverse osmosis filter systems to limit the pressure applied to the system
and ensure safe and reliable operation.
